Texas InstrumentsUnited States

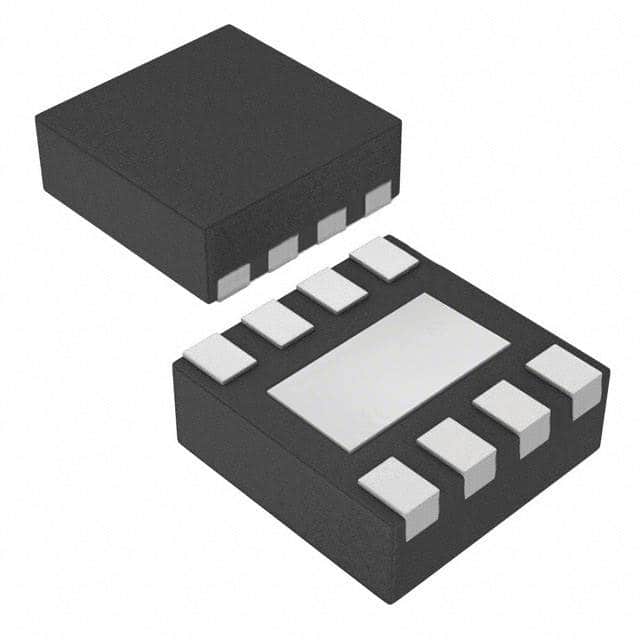

THERMOSTAT PROG ACT HI/LOW 8WSON
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | - |
| Current - Supply | 24µA |
| Voltage - Supply | 2.4 V ~ 5.5 V |
| AC and DC characteristics | |
| Accuracy | ±1.5°C |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2.5x2.5) |
| Switching Temperature | Programmable |
| Trip Temperature Threshold | Hot |
| Other | |
| Base Product Number | LM57 |
| Features | Selectable Trip Point, Trip Test |
| Mfr | Texas Instruments |
| Output | Active High, Active Low |
| Output Function | OverTemp, /OverTemp |
| Output Type | Open Drain, Push-Pull |
| Product Status | Active |
| Selectable Hysteresis | Yes |
| Series | - |
Documents
No documents are linked to this part yet.
