onsemiUnited States

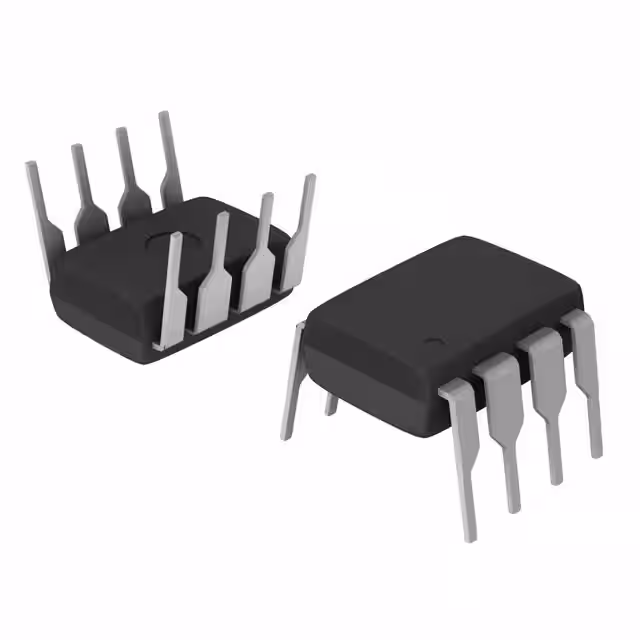

IC OPAMP GP 2 CIRCUIT 8DIP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage3 ~ 32 V
Gain bandwidth product700 kHzTyp
Input offset voltage2 mVTyp
Quiescent current800 µATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 45 nA |
| Current - Output / Channel | 40 mA |
| Current - Supply | 800µA (x2 Channels) |
| Voltage - Supply Span (Max) | 32 V |
| Voltage - Supply Span (Min) | 3 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 700 kHz |
| Slew Rate | - |
| Voltage - Input Offset | 2 mV |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C |
| Package | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | LM358 |
| Mfr | onsemi |
| Number of Circuits | 2 |
| Output Type | - |
| Product Status | Obsolete |
| Series | - |
