IC CURRENT SOURCE 3% 8SOIC
LM334SMX/NOPB is a 3-terminal adjustable current source operating from 1V to 40V with a current range of 1μA to 10mA, in an SOIC-8 package, featuring ±3% initial accuracy and 0.02%/V current regulation.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Datasheet-verified parameters
20 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Package | SOIC (D), 8 Pins | |
| Operating Temperature Range | 0°C to +70°C | |
| RoHS | Yes | |
| V+ to V- Forward Voltage | Max 40V | |
| V+ to V- Reverse Voltage | Max 20V | |
| R Pin to V- Voltage | Max 5V |
All parameters (14)
| Power | |
|---|---|
| Current - Output | Adjustable |
| Voltage - Input | 1V ~ 40V |
| AC and DC characteristics | |
| Accuracy | ±6% |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Base Product Number | LM334 |
| Function | Current Source |
| Mfr | Texas Instruments |
| Product Status | Active |
| Sensing Method | - |
| Series | - |
Pinout and package

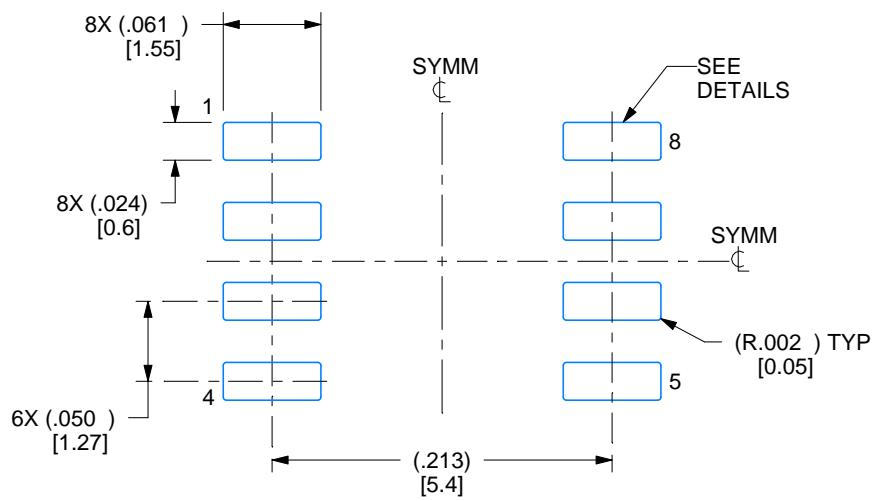

Figure 2. SOIC-8 Alternative P…
| Pin | Name | Function | Source |
|---|---|---|---|
| 1 | V- | (Negative Supply/Ground) | |
| 2 | R | (Set Resistor Connection) | |
| 3 | V+ | (Positive Supply/Output) | |
| 4 | NC | (No Connection) | |
| 5 | NC | (No Connection) | |
| 6 | NC | (No Connection) | |
| 7 | NC | (No Connection) | |
| 8 | NC | (No Connection) |
