Texas InstrumentsUnited States

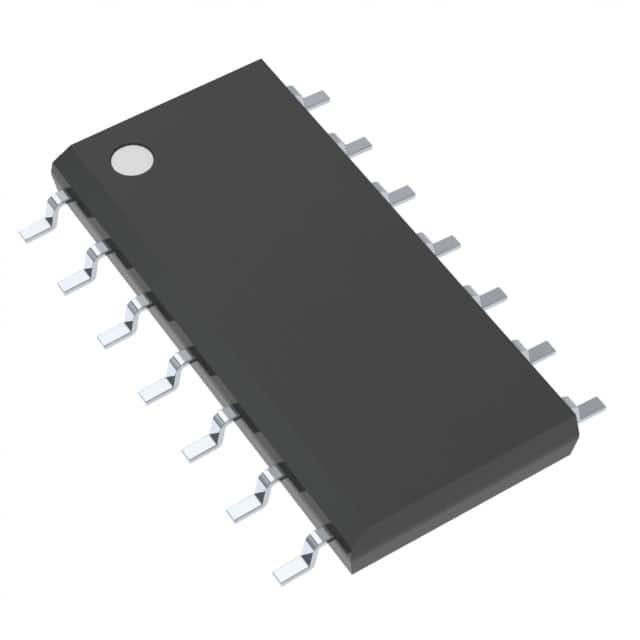

IC OPAMP GP 4 CIRCUIT 14SOIC
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage3 ~ 30 V
Gain bandwidth product1.2 MHzTyp
Input offset voltage3 mVTyp
Quiescent current1.4 mATyp
Channels4
| Power | |
|---|---|
| Current - Input Bias | 20 nA |
| Current - Output / Channel | 30 mA |
| Current - Supply | 1.4mA (x4 Channels) |
| Voltage - Supply Span (Max) | 30 V |
| Voltage - Supply Span (Min) | 3 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 1.2 MHz |
| Slew Rate | 0.5V/µs |
| Voltage - Input Offset | 3 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~70°C(TA) |
| Package | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | LM324 |
| Mfr | Texas Instruments |
| Number of Circuits | 4 |
| Output Type | - |
| Product Status | Discontinued at Digi-Key |
| Series | - |
