Texas InstrumentsUnited States

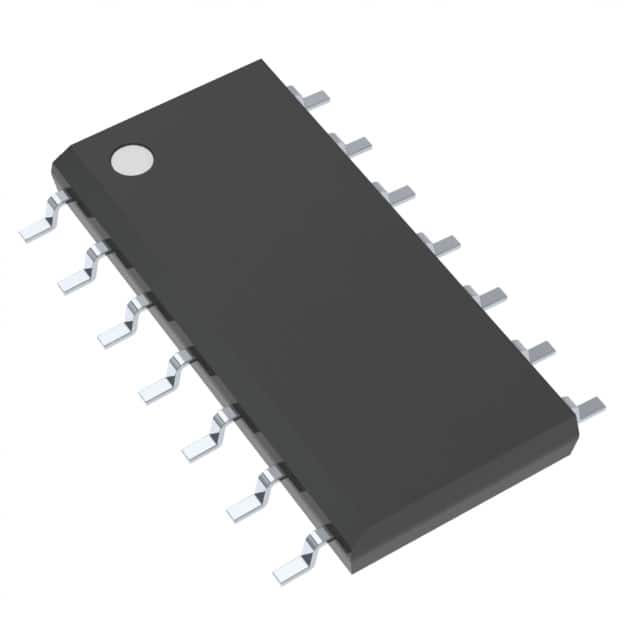

IC DIFF COMPARATOR QUAD 14-SOIC
All alternatives
View full reportTechnical parameters
Key specs
Elements4
Output typeOpen drain
Supply voltage2 ~ 30 V
Quiescent current2.5 mAMax
| Power | |
|---|---|
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 2.5mA |
| Voltage - Supply, Single/Dual (±) | 2V ~ 30V, ±1V ~ 15V |
| AC and DC characteristics | |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | - |
| Voltage - Input Offset (Max) | 7mV @ 30V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Other | |
| Base Product Number | LM2901 |
| Hysteresis | - |
| Mfr | Texas Instruments |
| Number of Elements | 4 |
| Output Type | CMOS, MOS, Open-Collector, TTL |
| Product Status | Discontinued at Digi-Key |
| Series | - |
| Type | General Purpose |
