LM2901DRG3
Texas InstrumentsUnited States

LM2901DRG3

ActiveComparatorsWQFN

IC COMPARATOR DIFF QUAD 14SOIC

LM2901DRG3 is a quad differential comparator in WQFN(16) package, operating from -40°C to 125°C with a supply voltage of 2V to 36V, featuring low quiescent current and fast response.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Elements4
Output typeOpen drain
Supply voltage2 ~ 36 V
Quiescent current800 µATyp · 1.2 mA (max) at VS=5V

Datasheet-verified parameters

18 items
ParameterValue and test conditionsSource
Channels4
Output TypeOpen-Collector
Response Time1 μsec (typ)
Supply Voltage2 to 36 V
Quiescent Current0.8 mA (typ), 1.2 mA (max) at VS=5V, no load
PackageWQFN (16)
Operating Temperature-40 to 125 °C
GradeIndustrial
Input Offset Voltage±0.37 mV (typ), ±5.5 mV (max) over temp
Input Bias Current3.5 nA (typ), 25 nA (max)
Common Mode Input Voltage Range(V-) to (V+) - 2.0 V
Low Level Output Voltage110 mV (typ), 400 mV (max) at ISINK≤4mA, VID=-1V
Output Sink Current25 mA (max)
ESD Protection (HBM)2000 V
Absolute Maximum Rating: Supply Voltage-0.3 V to 38 V
Absolute Maximum Rating: Junction Temperature150 °C
Recommended Operating Conditions: Supply Voltage2 V to 36 V
Recommended Operating Conditions: Ambient Temperature-40 °C to 125 °C
All parameters (20)ExpandCollapse
Power
Current - Input Bias (Max)0.25µA @ 5V
Current - Output (Typ)20mA
Current - Quiescent (Max)2.5mA
Voltage - Supply, Single/Dual (±)2V ~ 30V, ±1V ~ 15V
AC and DC characteristics
CMRR, PSRR (Typ)-
Propagation Delay (Max)-
Voltage - Input Offset (Max)7mV @ 30V
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~125°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®
Package / Case14-SOIC (0.154", 3.90mm Width)
Supplier Device Package14-SOIC
Other
Base Product NumberLM2901
Hysteresis-
MfrTexas Instruments
Number of Elements4
Output TypeCMOS, MOS, Open-Collector, TTL
Product StatusActive
Series-
TypeGeneral Purpose

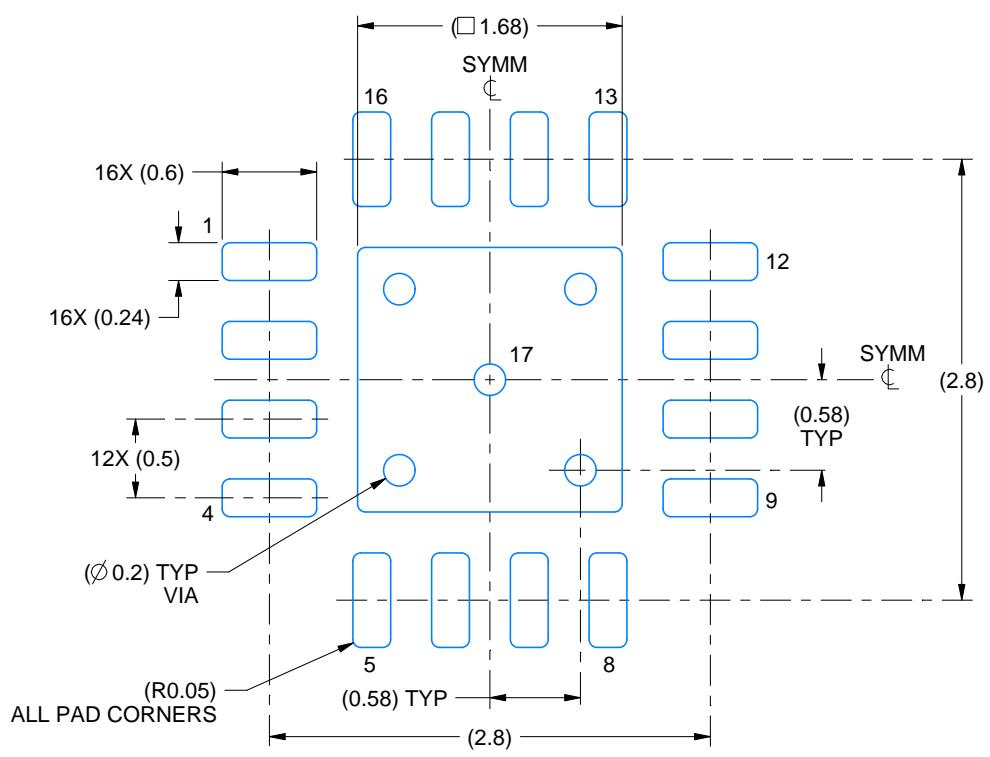

Pinout and package

PackageWQFN (16)

PinNameFunctionSource
1VCC, Positive supply
2IN1-, Negative input pin of the comparator 2
3NC, No Internal Connection
4IN1+, Positive input pin of the comparator 2
5IN2-, Negative input pin of the comparator 1
6IN2+, Positive input pin of the comparator 1
7IN3-, Negative input pin of the comparator 3
8IN3+, Positive input pin of the comparator 3
9IN4-, Negative input pin of the comparator 4
10NC, No Internal Connection
11IN4+, Positive input pin of the comparator 4
12GND, Negative supply
13OUT4, Output pin of the comparator 4
14OUT3, Output pin of the comparator 3
15OUT2, Output pin of the comparator 1
16OUT1, Output pin of the comparator 2
PADThermal Pad, Connect directly to GND pin
