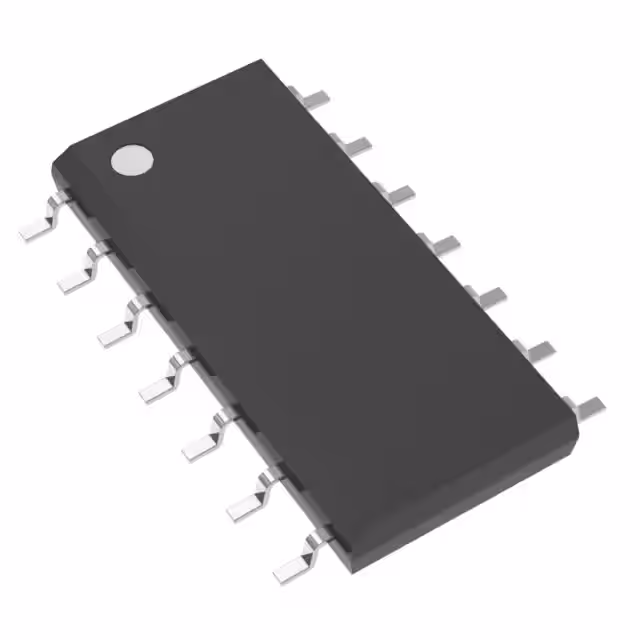

LM2901D
Texas InstrumentsUnited States

LM2901D

ActiveComparatorsSOIC

IC QUAD DIFF COMP 14-SOIC

LM2901D is a quad differential comparator in a 14-pin SOIC package. It operates from 2V to 36V with a temperature range of -40°C to 125°C. Features include low input bias current, low quiescent current, and open-collector outputs compatible with TTL, MOS, and CMOS logic.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Elements4
Output typeOpen drain
Supply voltage2 ~ 36 V
Quiescent current800 µATyp · 1.2 mA (max) at VS=5V

Datasheet-verified parameters

18 items
ParameterValue and test conditionsSource
Channels4
Output TypeOpen-collector
Response Time1 μsec (typ)
Supply Voltage2 to 36 V
Quiescent current0.8 mA (typ), 1.2 mA (max) at VS=5V, no load
PackageSOIC (14)
Operating Temperature-40 to 125 °C
GradeIndustrial
Input offset voltage±0.37 mV (typ), ±3.5 mV (max) at VS=5 to 36V, TA=25°C
Input bias current-3.5 nA (typ), -25 nA (max) at TA=25°C
Common mode range(V-) to (V+) - 1.5 V at VS=3 to 36V
Low level output Voltage110 mV (typ), 400 mV (max) at ISINK≤4mA, VID=-1V
Low level output current6 mA (min), 21 mA (typ) at VOL=1.5V, VID=-1V, VS=5V
Absolute Maximum Ratings: Supply voltage-0.3 V (min), 38 V (max)
Absolute Maximum Ratings: Differential input voltage±38 V (max)
Absolute Maximum Ratings: Output sink current25 mA (max)
Absolute Maximum Ratings: Junction temperature150 °C (max)
ESD rating (HBM)2000 V
All parameters (20)ExpandCollapse
Power
Current - Input Bias (Max)0.25µA @ 5V
Current - Output (Typ)20mA
Current - Quiescent (Max)2.5mA
Voltage - Supply, Single/Dual (±)2V ~ 30V, ±1V ~ 15V
AC and DC characteristics
CMRR, PSRR (Typ)-
Propagation Delay (Max)-
Voltage - Input Offset (Max)7mV @ 30V
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~125°C
PackageTube
Package / Case14-SOIC (0.154", 3.90mm Width)
Supplier Device Package14-SOIC
Other
Base Product NumberLM2901
Hysteresis-
MfrTexas Instruments
Number of Elements4
Output TypeCMOS, MOS, Open-Collector, TTL
Product StatusActive
Series-
TypeGeneral Purpose

Pinout and package

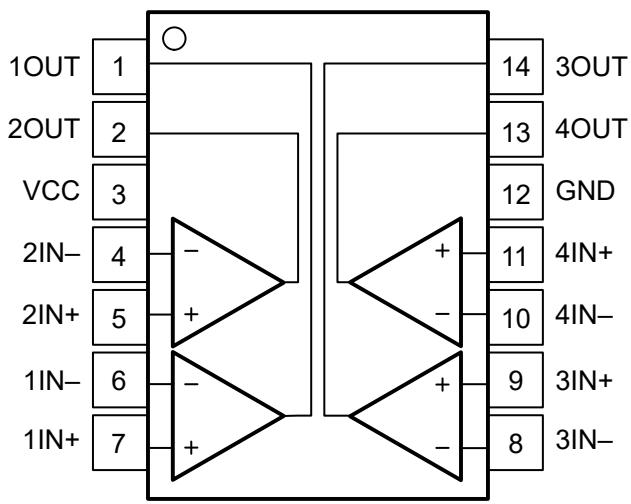

Figure 5-1. D, DB, N, NS, PW P…
Figure 5-1. D, DB, N, NS, PW P…

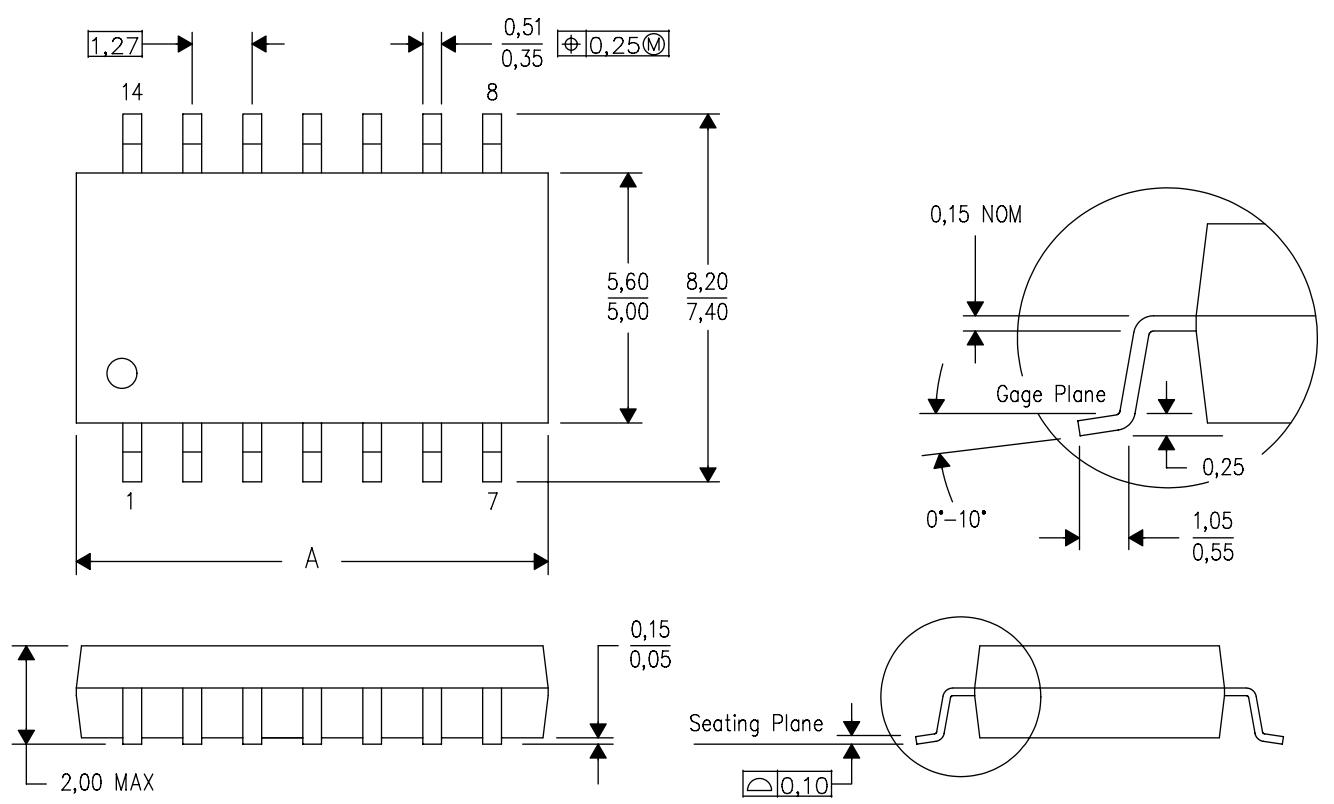

Package: SOIC (14)
PinNameFunctionSource
1OUT1, Output pin of the comparator 2
2OUT2, Output pin of the comparator 1
3VCC, Positive supply
4IN2-, Negative input pin of the comparator 1
5IN2+, Positive input pin of the comparator 1
6IN1-, Negative input pin of the comparator 2
7IN1+, Positive input pin of the comparator 2
8IN3-, Negative input pin of the comparator 3
9IN3+, Positive input pin of the comparator 3
10IN4-, Negative input pin of the comparator 4
11IN4+, Positive input pin of the comparator 4
12GND, Negative supply
13OUT4, Output pin of the comparator 4
14OUT3, Output pin of the comparator 3
