Figure 4-1. DSG Package 8-Pin …
Texas InstrumentsUnited States
IC REG CHARGE PUMP ADJ 8WSON
LM27761DSGT is a low-noise charge-pump voltage inverter with 2.7V-5.5V input, adjustable -1.5V to -5V output, 250mA max output current, 2MHz switching frequency, in 8-pin WSON package.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.7 ~ 5.5 V
Output voltage-5 ~ -1.5 VMax: -1.5 V (5.5 V ≥ VIN ≥ 2.7 V)
Output current250 mAMax
Switching frequency1.7 ~ 2.3 MHzMax: 2.3 MHz (VIN = 3.6 V)
Datasheet-verified parameters
27 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Operating input voltage | Min: 2.7 V, Max: 5.5 V | |
| Adjustable output voltage | Min: -5 V, Max: -1.5 V (5.5 V ≥ VIN ≥ 2.7 V) | |
| Operating output current | Min: 0 mA, Max: 250 mA | |
| Switching frequency | Min: 1.7 MHz, Typ: 2 MHz, Max: 2.3 MHz (VIN = 3.6 V) | |
| Package | WSON (DSG), 8-Pin, 2.00mm × 2.00mm | |
| Operating ambient temperature | Min: -40 °C, Max: 85 °C |
All parameters (21)
| Power | |
|---|---|
| Current - Output | 250mA |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Max) | -5V |
| Voltage - Output (Min/Fixed) | -1.5V |
| AC and DC characteristics | |
| Frequency - Switching | 2MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) |
| Other | |
| Base Product Number | LM27761 |
| Function | Step-Up/Step-Down |
| Mfr | Texas Instruments |
| Number of Outputs | 1 |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
Pinout and package

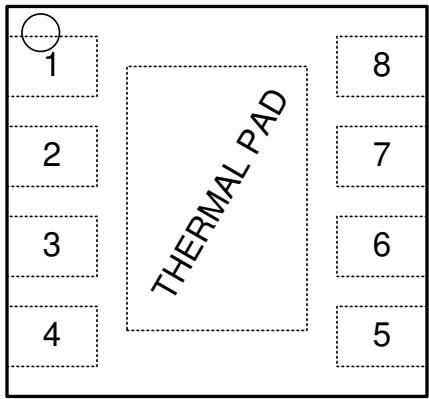

Figure 4-1. DSG Package 8-Pin …
| Pin | Name | Function | Source |
|---|---|---|---|
| 1 | VIN, Positive power supply input | ||
| 2 | GND, Ground | ||
| 3 | CPOUT, Negative unregulated output voltage | ||
| 4 | VOUT, Regulated negative output voltage | ||
| 5 | VFB, Feedback input. Connect VFB to an external resistor divider between VOUT and GND. DO NOT leave unconnected. | ||
| 6 | EN, Active high enable input | ||
| 7 | C1-, Negative terminal for C1 | ||
| 8 | C1+, Positive terminal for C1 | ||
| Thermal Pad | Thermal Pad, Ground. DO NOT leave unconnected. |
