Texas InstrumentsUnited States

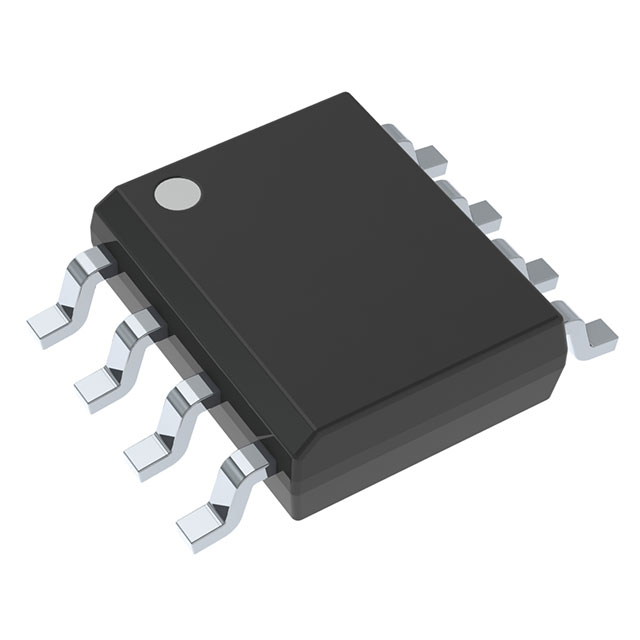

IC COMPARATOR 2 DIFF 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Elements2
Output typeOpen drain
Supply voltage2 ~ 36 V
Quiescent current2.5 mAMax
| Power | |
|---|---|
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 2.5mA |
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
| AC and DC characteristics | |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | - |
| Voltage - Input Offset (Max) | 5mV @ 30V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Base Product Number | LM193 |
| Hysteresis | - |
| Manufacturer | Texas Instruments |
| Number of Elements | 2 |
| Output Type | Open-Collector, Rail-to-Rail |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Series | - |
| Type | General Purpose |
