Laird-Signal Integrity ProductsUnited States

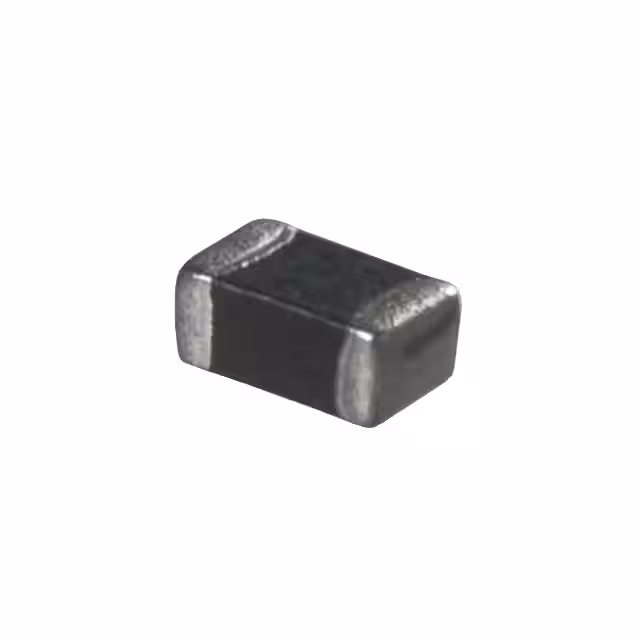

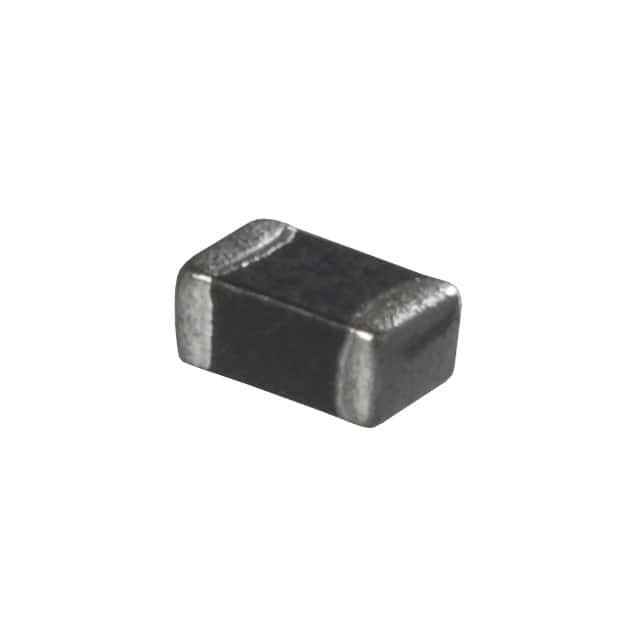

FERRITE BEAD 40 OHM 0805 1LN
All alternatives
View full reportTechnical parameters
Key specs
Impedance40 Ω100 MHz
Current rating1 AMax
DC resistance150 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 1A |
| AC and DC characteristics | |
| Impedance @ Frequency | 40 Ohms @ 100 MHz |
| Environment and package | |
| Height (Max) | 0.035" (0.90mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Other | |
| DC Resistance (DCR) (Max) | 150mOhm |
| Filter Type | Power, Signal Line |
| Mfr | Laird-Signal Integrity Products |
| Number of Lines | 1 |
| Product Status | Active |
| Ratings | - |
| Series | 0805 |
