Texas InstrumentsUnited States
IC OPAMP JFET 4 CIRCUIT 14SOIC
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage10 ~ 36 V
Gain bandwidth product4 MHzTyp
Input offset voltage5 mVTyp
Quiescent current7.2 mATyp
Channels4
| Power | |
|---|---|
| Current - Input Bias | 50 pA |
| Current - Supply | 7.2mA (x4 Channels) |
| Voltage - Supply Span (Max) | 36 V |
| Voltage - Supply Span (Min) | 10 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 4 MHz |
| Slew Rate | 13V/µs |
| Voltage - Input Offset | 5 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

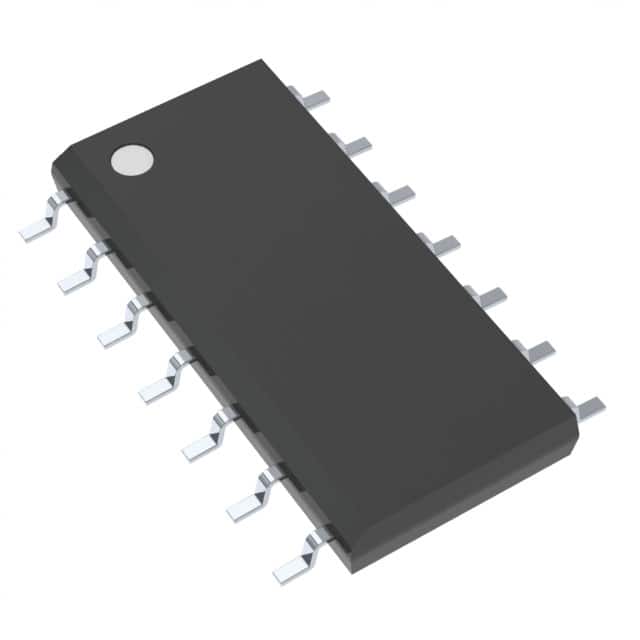

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Other | |
| Amplifier Type | J-FET |
| Base Product Number | LF347 |
| Mfr | Texas Instruments |
| Number of Circuits | 4 |
| Output Type | - |
| Product Status | Active |
| Series | - |
