Lumex Opto/Components Inc.United States

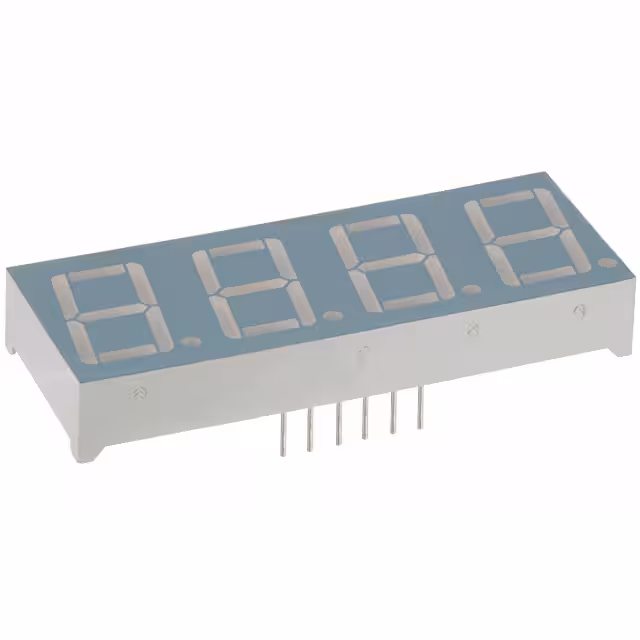

DISP 7SEG 0.56" QUAD YLW 12DIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Test | 10mA |
| Power Dissipation (Max) | 105mW |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Environment and package | |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Package | Bulk |
| Package / Case | 12-DIP (0.600", 15.24mm) |

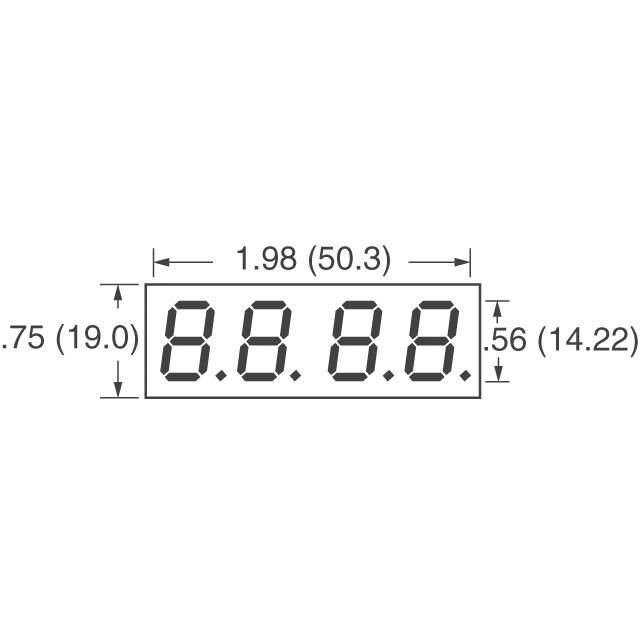

| Size / Dimension | 0.748" H x 1.980" W x 0.315" D (19.00mm x 50.30mm x 8.00mm) |
| Other | |
| Base Product Number | LDQ-M513 |
| Color | Yellow |
| Common Pin | Common Anode |
| Display Format | - |
| Display Type | 7-Segment |
| Mfr | Lumex Opto/Components Inc. |
| Millicandela Rating | 3.9mcd |
| Number of Characters | 4 |
| Product Status | Active |
| Series | - |
| Wavelength - Peak | 585nm |
