MEAN WELL USA Inc.Taiwan, China

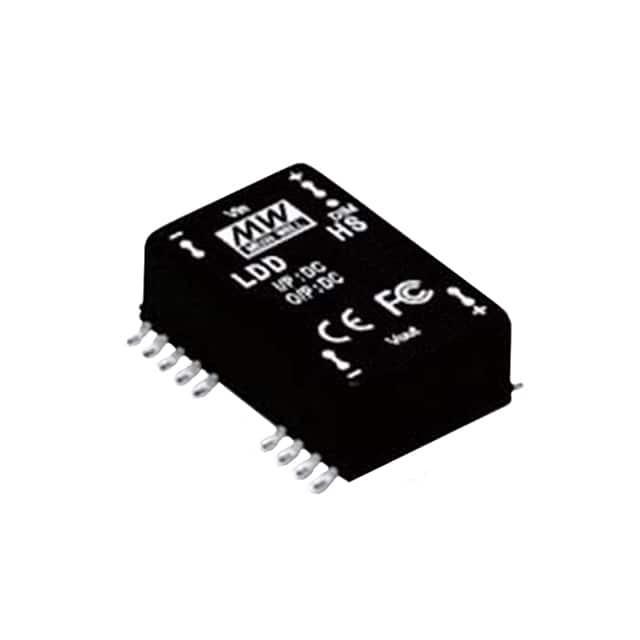

LED DRIVER CC BUCK 2-52V 500MA
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 500mA |
| Voltage - Input (Max) | 56V |
| Voltage - Input (Min) | 9V |
| Voltage - Output | 2 ~ 52V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 24-SMD Module, 18 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm) |
| Other | |
| Approval Agency | CE |
| Base Product Number | LDD-500 |
| Dimming | PWM |
| Efficiency | 96% |
| Features | Remote On/Off, OTP, SCP |
| Mfr | MEAN WELL USA Inc. |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | LDD-H |
| Topology | Buck |
| Type | Constant Current |
