MEAN WELL USA Inc.Taiwan, China

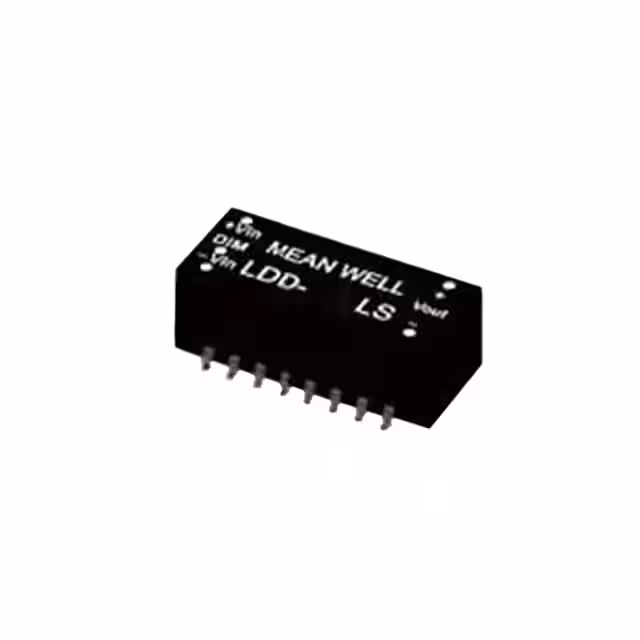

LED DRIVER CC BUCK 2-28V 300MA
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 300mA |
| Voltage - Input (Max) | 32V |
| Voltage - Input (Min) | 9V |
| Voltage - Output | 2 ~ 28V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 16-SMD Module |
| Size / Dimension | 1.00" L x 0.41" W x 0.37" H (25.4mm x 10.5mm x 9.3mm) |
| Other | |
| Approval Agency | CE |
| Base Product Number | LDD-300 |
| Dimming | PWM |
| Efficiency | 95% |
| Features | Remote On/Off, OTP, SCP |
| Mfr | MEAN WELL USA Inc. |
| Number of Outputs | 1 |
| Product Status | Not For New Designs |
| Series | LDD-L |
| Topology | Buck |
| Type | Constant Current |
