Red Lion ControlsUnited States

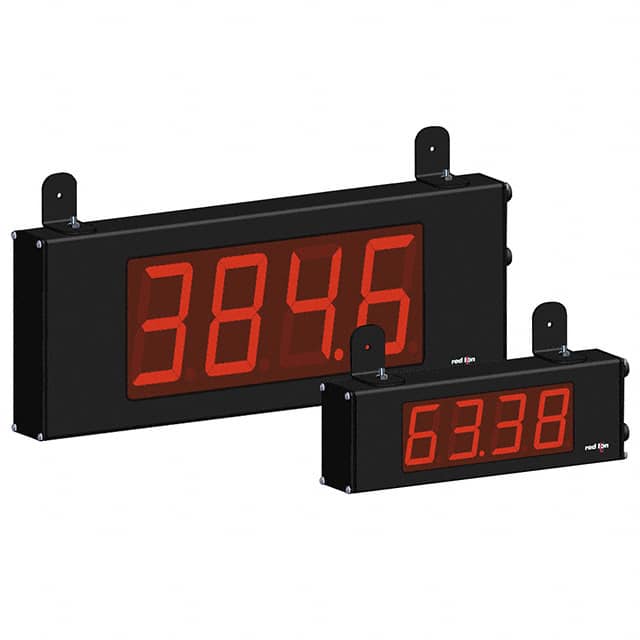

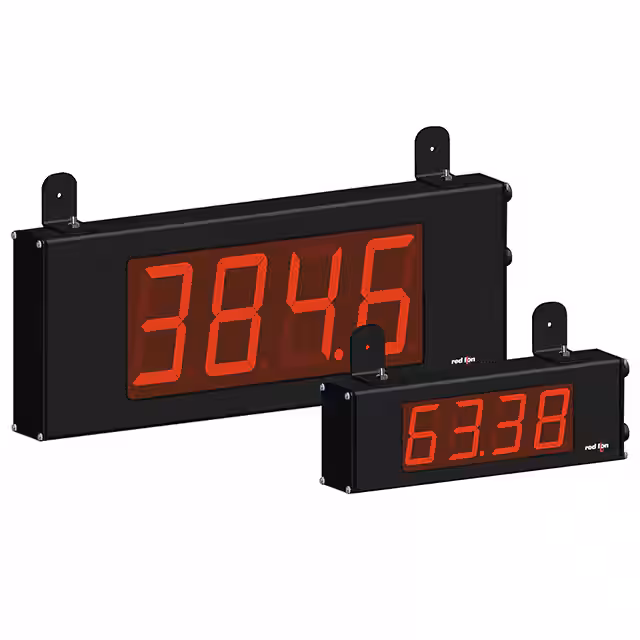

COUNTER LED 6 CHAR 50-250V CHASS
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 50 ~ 250VAC |
| Environment and package | |
| Display Characters - Height | 4.000" (101.00mm) |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~65°C |
| Package | Bulk |
| Panel Cutout Dimensions | - |
| Other | |
| Base Product Number | LD4006 |
| Count Rate | 50Hz, 25kHz |
| Display Type | LED - Red Characters |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Input Type | Voltage |
| Mfr | Red Lion Controls |
| Number of Characters Per Row | 6 |
| Operating Mode | Up, Down, Command, Individual, Quadrature |
| Output Type | Relay (2) |
| Product Status | Active |
| Reset | External, Front Panel, Programmable |
| Series | LD |
| Termination Style | Screw Terminal |
| Time Format | - |
| Type | Batch, Tachometer, Totalizer |
| Weight | - |
Documents
No documents are linked to this part yet.
