Panduit CorpUnited States

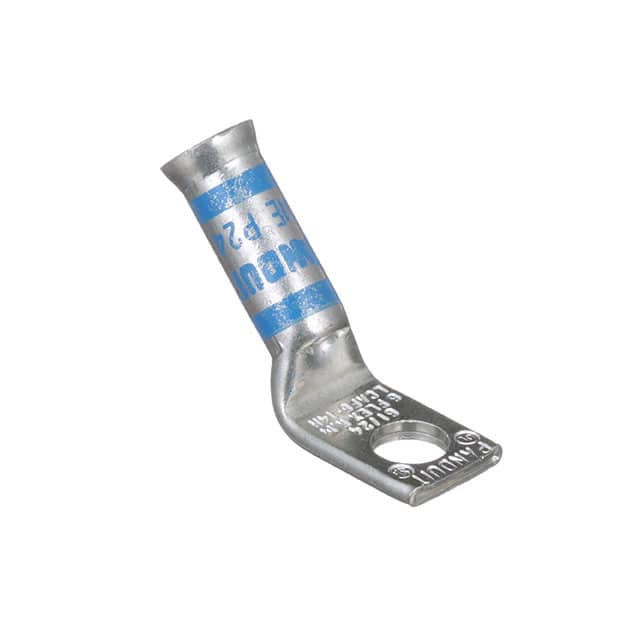

CONN TERM RECT TONG 6 AWG #1/4
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Package | Bulk |
| Stud/Tab Size | 1/4 Stud |
| Other | |
| Base Product Number | LCAF |
| Color | Blue |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.220" (5.59mm) |
| Diameter - Barrel OD | 0.370" (9.40mm) |
| Diameter - Ring ID | 0.270" (6.86mm) |
| Features | - |
| Insulation | Non-Insulated |
| Length - Overall | - |
| Mfr | Panduit Corp |
| Product Status | Obsolete |
| Series | Pan-Lug® |
| Tab Thickness | 0.080" (2.03mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480" (12.19mm) |
| Wire Gauge | 6 AWG |
