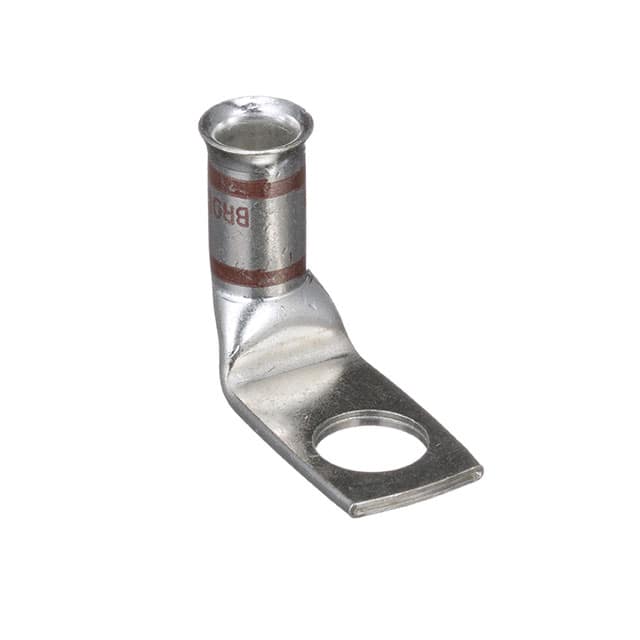

LCAF2-12F-E
Panduit CorpUnited States

LCAF2-12F-E

ObsoleteRectangular Connectors

CONN TERM RECT TONG 2 AWG #1/2

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Environment and package
Mounting TypeFree Hanging (In-Line), Right Angle
PackageBulk
Stud/Tab Size1/2 Stud
Other
Base Product NumberLCAF2
ColorBrown
Contact FinishElectro-Tin
Contact MaterialCopper
Diameter - Barrel ID0.360" (9.14mm)
Diameter - Barrel OD0.550" (13.97mm)
Diameter - Ring ID0.530" (13.46mm)
Features-
InsulationNon-Insulated
Length - Overall-
MfrPanduit Corp
Product StatusObsolete
SeriesPan-Lug®
Tab Thickness0.090" (2.29mm)
Terminal StyleSingle Stud Hole
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Width - Outer Edges0.790" (20.07mm)
Wire Gauge2 AWG

Documents

No documents are linked to this part yet.
