Diodes IncorporatedUnited States
IC REGULATOR
All alternatives
View full reportTechnical parameters
Key specs
Output voltage1.8 V
Output current1 AMax
Input voltage≤ 15 V
Dropout voltage1.4 VMax · 800mA
Quiescent current10 mATyp
| Power | |
|---|---|
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| Voltage Dropout (Max) | 1.4V @ 800mA |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| AC and DC characteristics | |
| PSRR | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR) |

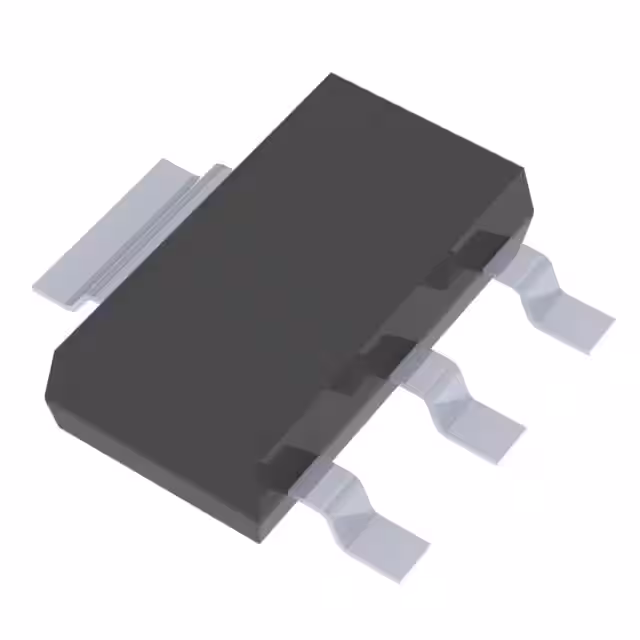

| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Other | |
| Control Features | Current Limit |
| Mfr | Diodes Incorporated |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Obsolete |
| Protection Features | Over Current, Over Temperature, Transient Voltage |
| Series | - |
