LumiledsNetherlands

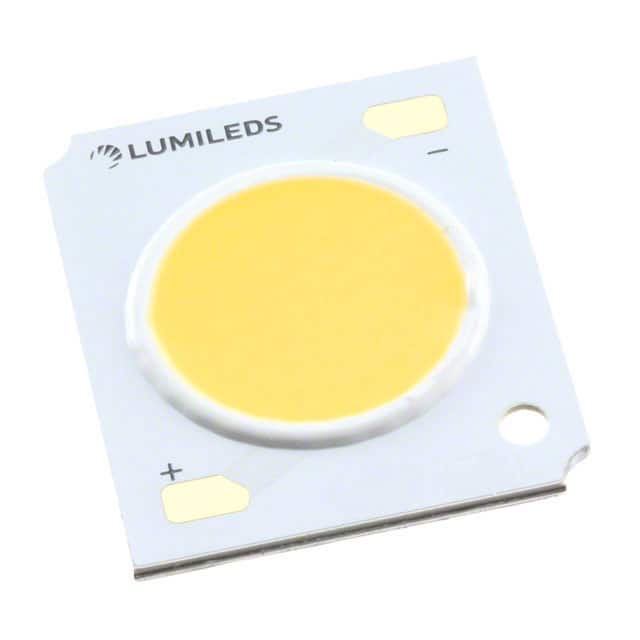

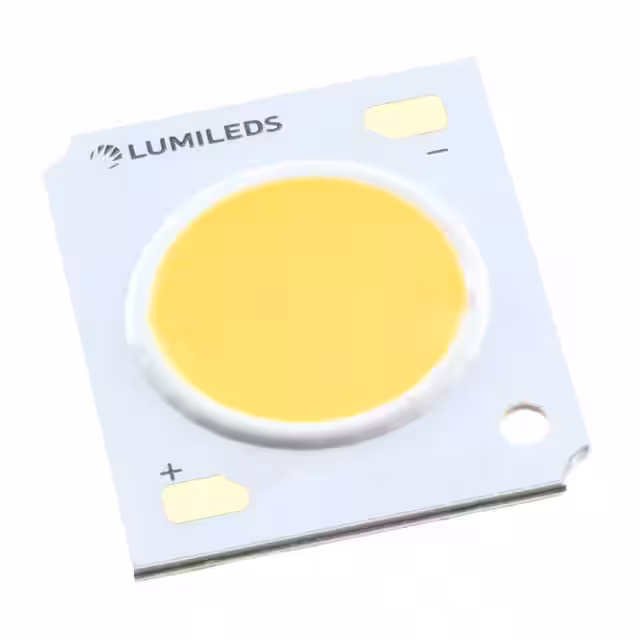

LED COB 1204 3500K WW 70CRI SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 900mA |
| Current - Test | 450mA |
| Lumens/Watt @ Current - Test | 143 lm/W |
| Voltage - Forward (Vf) (Typ) | 35V |
| Environment and package | |
| Height | 1.50mm |
| Luminous Flux @ Current/Temperature | 2248lm(Typ) |
| Package | Tube |
| Size / Dimension | 20.00mm L x 24.00mm W |
| Temperature - Test | 85°C |
| Other | |
| Base Product Number | L2C2 |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| Color | White, Warm |
| Configuration | Rectangle |
| CRI (Color Rendering Index) | 70 |
| Features | - |
| Lens Type | Flat |
| Light Emitting Surface (LES) | 13.00mm Dia |
| Mfr | Lumileds |
| Product Status | Obsolete |
| Series | LUXEON CoB Core Range |
| Type | Chip On Board (COB) |
| Viewing Angle | 115° |
| Wavelength | - |
