CIT Relay and SwitchUnited States

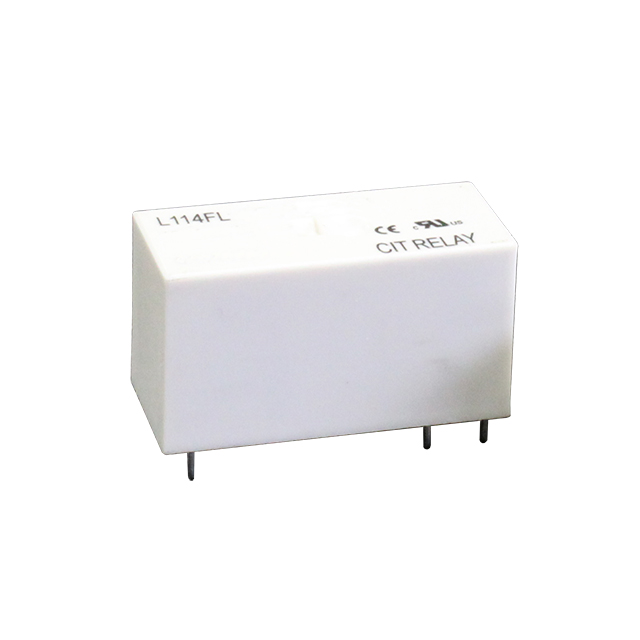

RELAY GEN PURPOSE SPDT 20A 9V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage9 V
Contact formSPDT
Contact current20 AMax
Switching voltage300 VMax
| Power | |
|---|---|
| Coil Current | 66.7 mA |
| Coil Voltage | 9VDC |
| Contact Rating (Current) | 20 A |
| Must Operate Voltage | 6.3 VDC |
| Must Release Voltage | - |
| Switching Voltage | 300VAC - Max |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tube |
| Other | |
| Base Product Number | L114FL1 |
| Coil Insulation | - |
| Coil Resistance | 135 Ohms |
| Coil Type | Latching, Dual Coil |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Features | Reverse Coil Polarity |
| Mfr | CIT Relay and Switch |
| Operate Time | 10 ms |
| Product Status | Active |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Series | L114FL |
| Termination Style | PC Pin |
