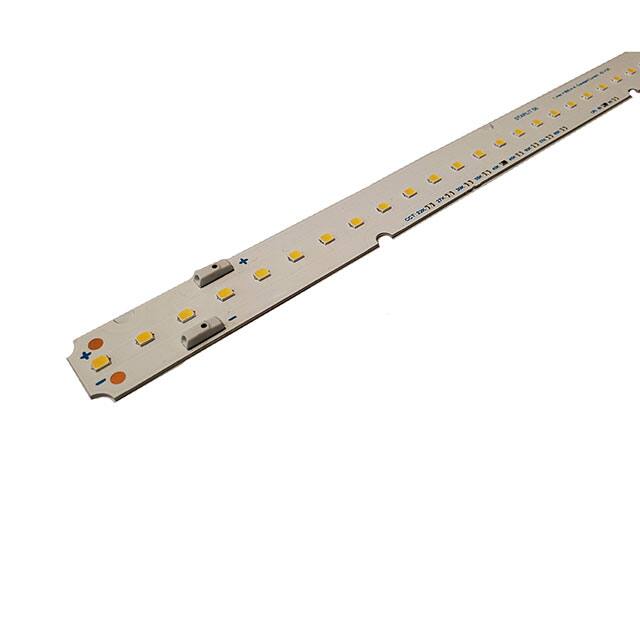

LINEAR 56 LED 5000K 80 CRI
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 700mA |
| Current - Test | 350mA |
| Lumens/Watt @ Current - Test | 187 lm/W |
| Voltage - Forward (Vf) (Typ) | 39.6V |
| Environment and package | |
| Height | 3.70mm |
| Luminous Flux @ Current/Temperature | 2600lm(Typ) |
| Package | Box |
| Size / Dimension | 558.80mm L x 19.00mm W |
| Temperature - Test | - |
| Other | |
| Base Product Number | L056CR558019 |
| CCT (K) | 5000K |
| Color | White, Cool |
| Configuration | Linear Light Strip |
| CRI (Color Rendering Index) | 80 |
| Features | - |
| Lens Type | Flat |
| Light Emitting Surface (LES) | - |
| Mfr | WCI |
| Product Status | Active |
| Series | STARLIT |
| Type | LED Module |
| Viewing Angle | - |
| Wavelength | - |
