Volgen + FurunoJapan

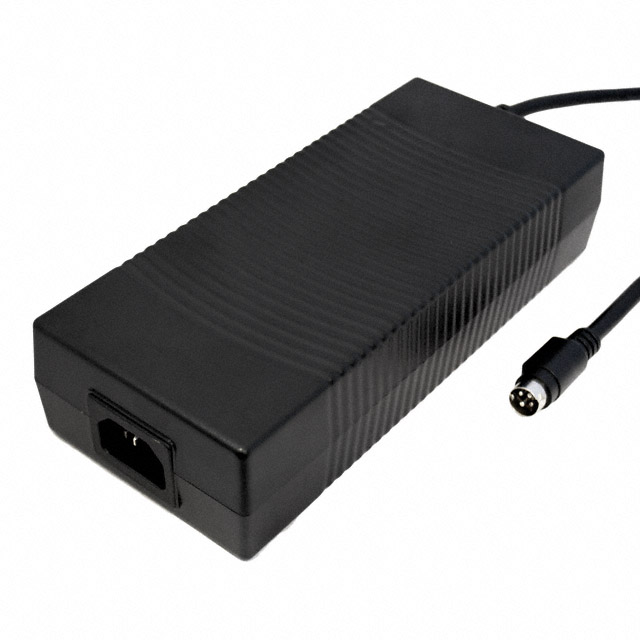

KTPS200-18110-VI
AC DC Desktop, Wall Power AdaptersAC/DC DESKTOP ADAPTER 18V 198W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage18 V
Output current11 AMax
Power198 WMax
| Power | |
|---|---|
| Current - Output (Max) | 11A |
| No Load Power Consumption | - |
| Power (Watts) | 198 W |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 18V |
| Environment and package | |
| Operating Temperature | 0°C ~ 40°C |
| Size / Dimension | 7.20" L x 3.19" W x 1.67" H (183.0mm x 81.0mm x 42.3mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cUL, GS, PSE, UL |
| Base Product Number | KTPS200 |
| Cord Length | 47.2" (1.20m) |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| Manufacturer | Volgen + Furuno |
| Output Connector | Power DIN, 4 Pin |
| Packaging | Box |
| Part Status | Active |
| Polarization | - |
| Region Utilized | International |
| Series | KTPS200 (200W) |
| Weight | 1.9 lbs (861.8 g) |
Documents
No documents are linked to this part yet.
