Kaga Electronics USAJapan

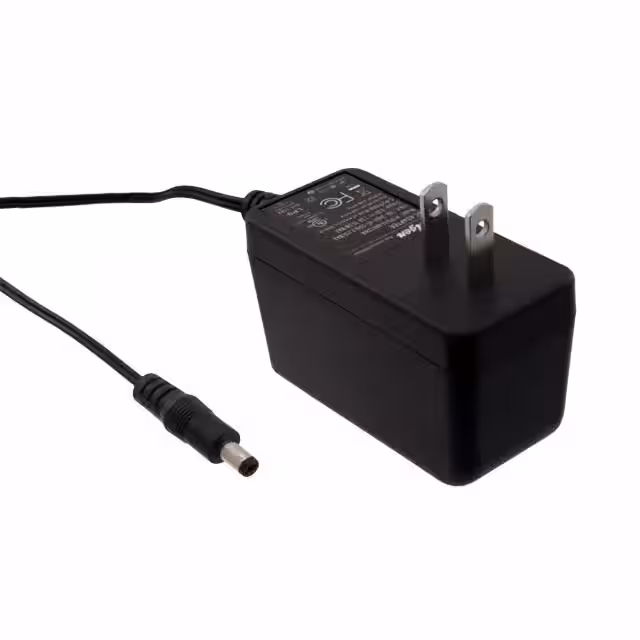

AC/DC WALL MOUNT ADAPTER 15V 12W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage15 V
Output current800 mAMax
Power12 WMax
| Power | |
|---|---|
| Current - Output (Max) | 800mA |
| No Load Power Consumption | - |
| Power (Watts) | 12 W |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 15V |
| Environment and package | |
| Operating Temperature | 0°C~40°C |
| Package | Box |
| Size / Dimension | 2.83" L x 1.34" W x 1.65" H (72.0mm x 34.0mm x 42.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | IEC |
| Cord Length | 59" (1.50m) |
| Efficiency | Level V |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Mfr | Kaga Electronics USA |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Polarization | Positive Center |
| Product Status | Obsolete |
| Region Utilized | North America |
| Series | KTPS10 (10W) |
| Standard Number | 60950-1 |
| Weight | 0.278 lb (126.1 g) |
