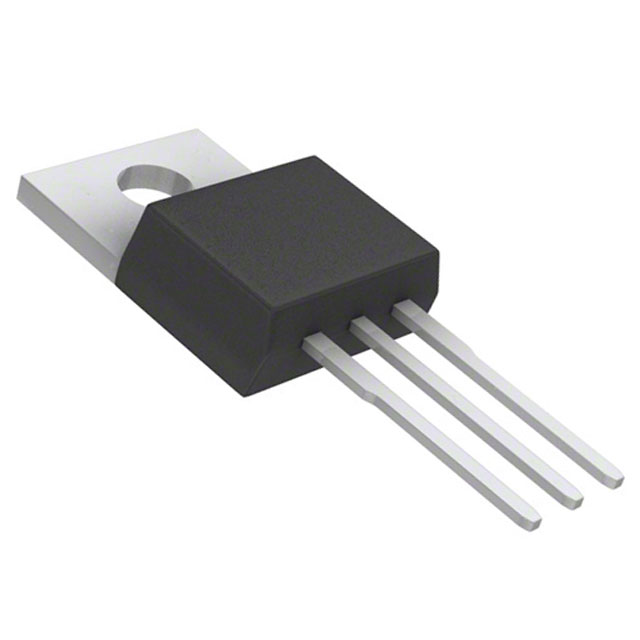

TRANS PNP 30V 3A TO220-3
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage30 V
Collector current3 AMax
DC current gain120500mA
Power10 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| Current - Collector (Ic) (Max) | 3 A |
| Power - Max | 10 W |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 500mA, 2V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Other | |
| Base Product Number | KSA473 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 800mV @ 200mA, 2A |
