View full reportTechnical parameters
Key specs
CircuitSPST-NO
Switch functionOff-Mom
Current rating10 mAMax · 32VDC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.01A @ 32VDC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |

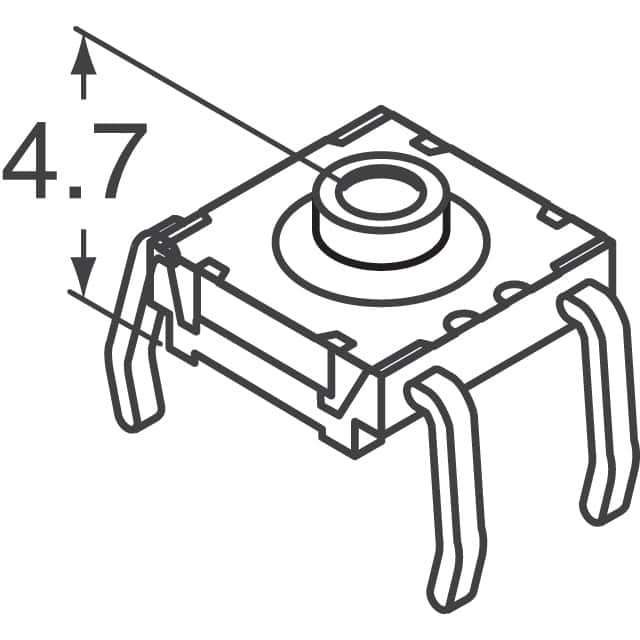

| Actuator Height off PCB, Vertical | 4.70mm |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C |
| Package | Bulk |
| Other | |
| Actuator Length, Right Angle | - |
| Actuator Material | - |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Base Product Number | KSA1M3 |
| Circuit | SPST-NO |

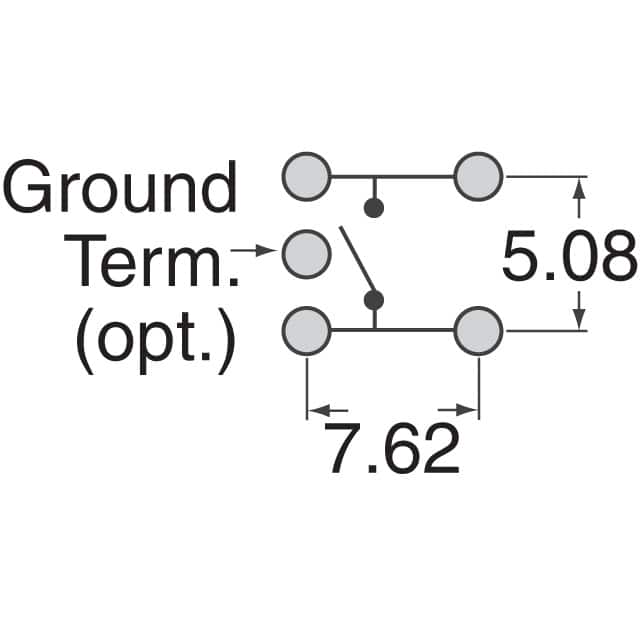

| Features | Grounding Pin |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | IP60 - Dust Tight |
| Mechanical Life | 1,000,000 Cycles |
| Mfr | C&K |
| Operating Force | 130gf |
| Outline | 7.40mm x 7.40mm |
| Product Status | Discontinued at Digi-Key |
| Series | KSA |
| Switch Function | Off-Mom |
| Switch Travel | 0.50mm |
| Termination Style | PC Pin |
