Diwell ElectronicsUnited States

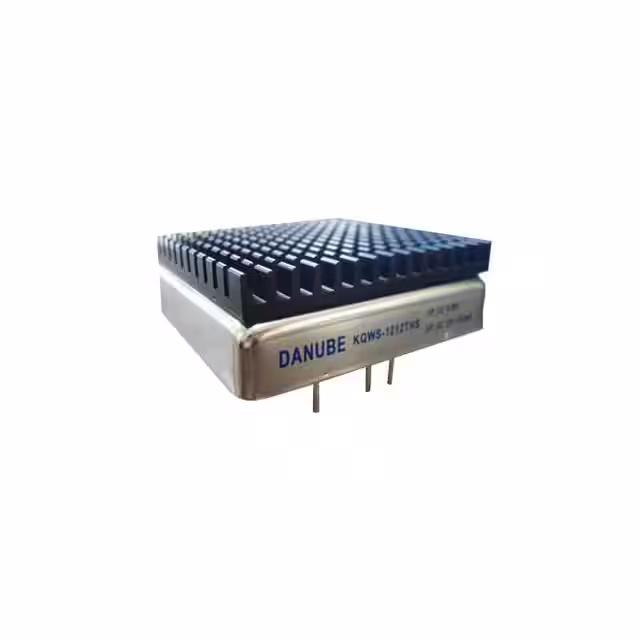

DC DC CONVERTER 5V 40W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage9 ~ 36 V
Output voltage5 V
Output current8 AMax
Power40 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 8A |
| Power (Watts) | 40 W |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 9V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~75°C |
| Package | Tube |
| Package / Case | 8-DIP Module |
| Size / Dimension | 2.00" L x 2.00" W x 0.69" H (50.8mm x 50.8mm x 17.5mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, FCC |
| Control Features | - |
| Efficiency | 89% |
| Features | Adjustable Output, Heat Sink, Remote On/Off |
| Mfr | Diwell Electronics |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | KQWS (40W) |
| Standard Number | - |
| Type | Isolated Module |
Documents
No documents are linked to this part yet.
