C&KUnited States

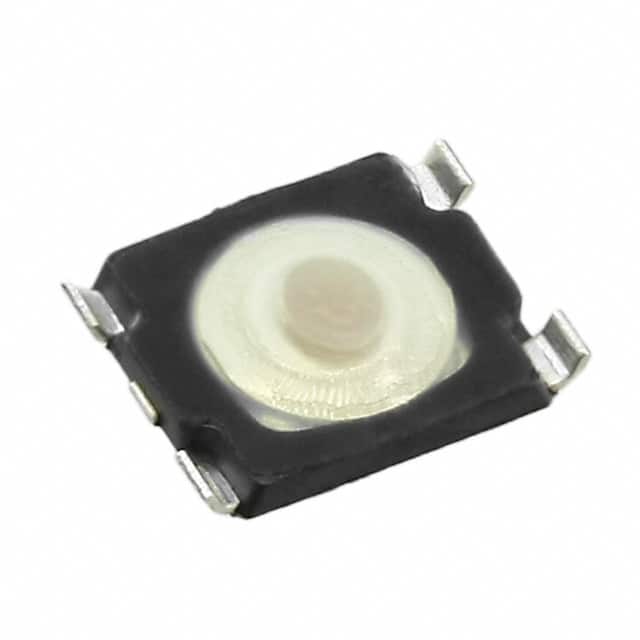

SWITCH TACTILE SPST-NO 0.05A 32V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST-NO
Switch functionOff-Mom
Current rating50 mAMax · 32VDC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.05A @ 32VDC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |
| Actuator Height off PCB, Vertical | 0.65mm |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Actuator Length, Right Angle | - |
| Actuator Material | - |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Base Product Number | KMT072 |
| Circuit | SPST-NO |
| Features | Tactile Feedback |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mechanical Life | 600,000 Cycles |
| Mfr | C&K |
| Operating Force | 230gf |
| Outline | 3.00mm x 2.60mm |
| Product Status | Active |
| Series | KMT0 |
| Switch Function | Off-Mom |
| Switch Travel | 0.15mm |
| Termination Style | J Lead |
