Thermoelectric Conversion Systems LtdUnited Kingdom
BATT CHRG OPEN 14.4V/28.8V 12A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Charge Current - Max | 12A |
| Power - Max | 200W |
| Voltage - Input | 4 ~ 70V |
| Voltage - Nominal | 14.4V/28.8V |
| Environment and package | |
| Battery Cell Size | 12V/24V |
| Mounting Type | Chassis Mount |
| Operating Temperature | - |
| Package | Box |
| Size / Dimension | 3.35" L x 2.56" W x 0.59" H (85.00mm x 65.00mm x 15.00mm) |
| Other | |
| Approval Agency | - |

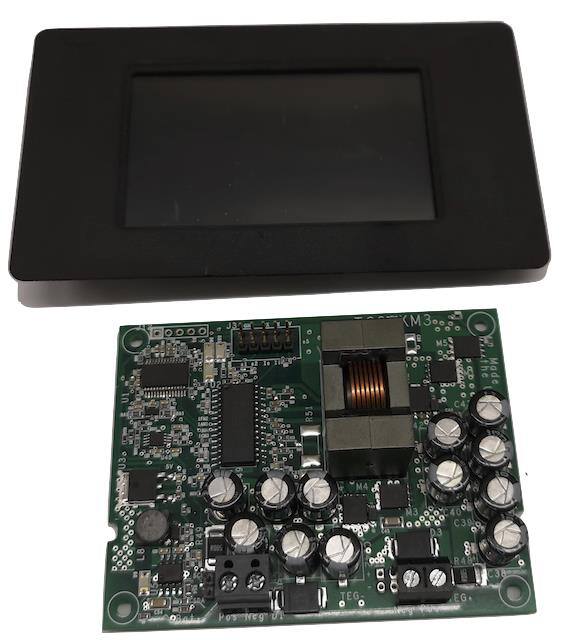

| Base Product Number | KM3 |
| Battery Chemistry | Lead Acid |
| Charge Time | - |
| Features | - |
| Mfr | Thermoelectric Conversion Systems Ltd |
| Number of Cells | 1 |
| Product Status | Active |
| Series | KM |
| Termination Style | Screw Terminal |
| Type | Open Frame |
Documents
No documents are linked to this part yet.
