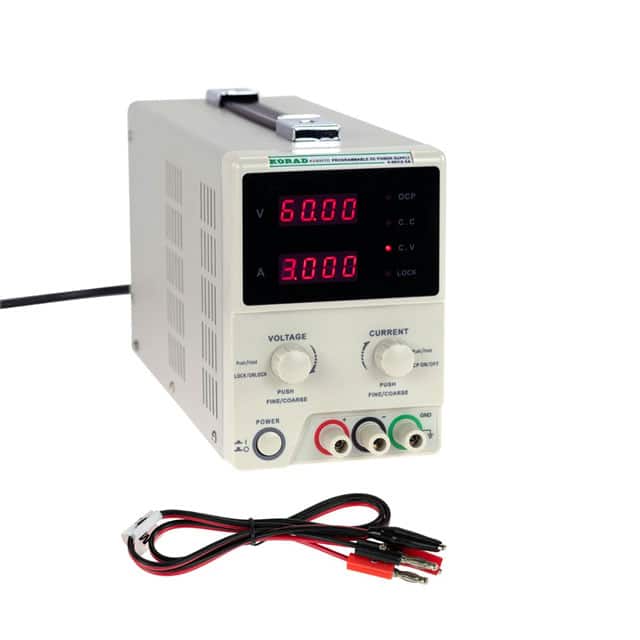

POWER SUPPLY 60V, 3A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 3A |
| Power (Watts) | - |
| Voltage - Output | 0 ~ 60VDC |
| Voltage - Supply | 110 ~ 220VAC |
| AC and DC characteristics | |
| Accuracy - Voltmeter; Ammeter | 0.5% + 30mV; 0.5% + 5mA |
| Current Regulation - Line | 0.1% + 3mA |
| Current Regulation - Load | 0.1% + 5mA |
| Ripple | 1mV rms, 3mV rms |
| Voltage Regulation - Line | 0.01% + 3mV |
| Voltage Regulation - Load | 0.01% + 2mV |
| Environment and package | |
| Package | Box |
| Size / Dimension | 10.236" L x 4.331" W x 6.142" H (260.00mm x 110.00mm x 156.00mm) |
| Other | |
| Display Type | LED |
| Features | Adjustable or Fixed Selection Switch, Programmable, Regulated, RS-232, USB Interface |
| Mfr | SRA Soldering Products |
| Number of Characters | 4 (2) |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | KD |
| Type | Bench (AC to DC) |
| Weight | - |
