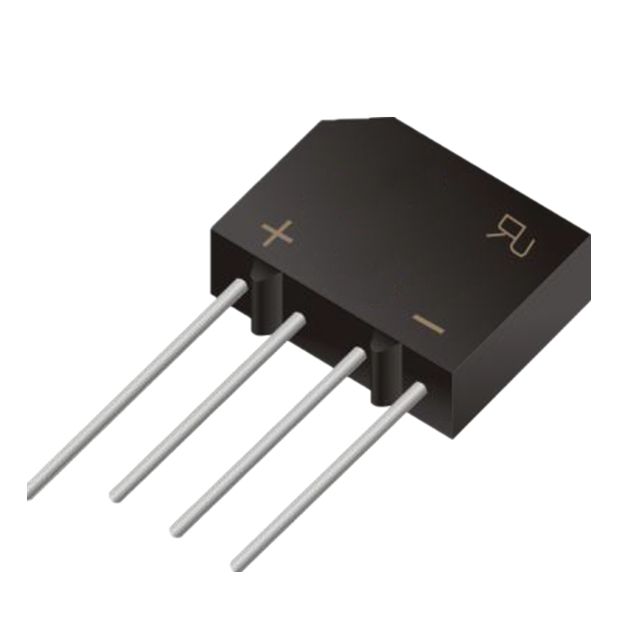

BRIDGE RECT 1PHASE 1KV 15A KBU
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage1 kV
Average rectified current15 A
Forward voltage1 VMax · 7.5 A
TypeStandard
| Power | |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 7.5 A |
| Voltage - Peak Reverse (Max) | 1 kV |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Box |
| Package / Case | 4-SIP, KBL |
| Supplier Device Package | KBU |
| Other | |
| Diode Type | Single Phase |
| Mfr | MDD |
| Product Status | Active |
| Series | KBU |
| Technology | Standard |
