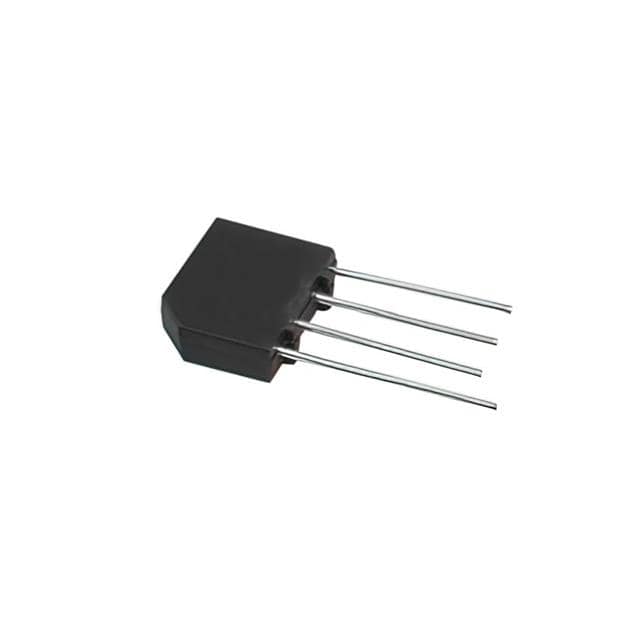

KBP308
Yangjie TechnologyChina

KBP308

ActiveDiodes - Bridge Rectifiers

KBP 800V 3.0A Diodes Bridge Re

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Reverse voltage800 V
Average rectified current3 A
Forward voltage1.1 VMax · 1 A
TypeStandard
Power
Current - Average Rectified (Io)3 A
Current - Reverse Leakage @ Vr10 µA @ 800 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 1 A
Voltage - Peak Reverse (Max)800 V
Environment and package
Mounting TypeThrough Hole
Operating Temperature-55°C~125°C
PackageBulk
Package / Case4-SIP, KBPR
Supplier Device PackageKBPR
Other
Diode TypeSingle Phase
MfrYangjie Technology
Product StatusActive
Series-
TechnologyStandard
