onsemiUnited States

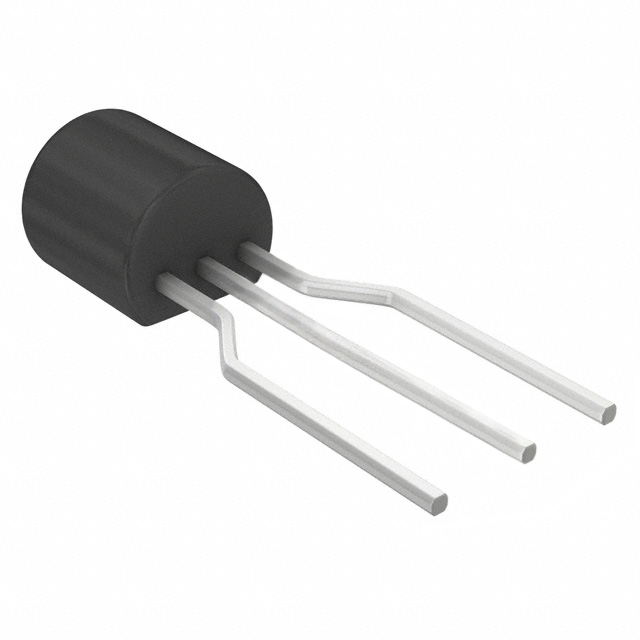

IC REG LINEAR 5V 100MA TO92-3
All alternatives
View full reportTechnical parameters
Key specs
Output voltage5 V
Output current100 mAMax
Input voltage≤ 30 V
Quiescent current5.5 mATyp
| Power | |
|---|---|
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 5.5 mA |
| Voltage Dropout (Max) | - |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| AC and DC characteristics | |
| PSRR | 80dB (120Hz) |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C |
| Package | Cut Tape (CT) Tape & Box (TB) |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92-3 |
| Other | |
| Base Product Number | KA78L05 |
| Control Features | - |
| Mfr | onsemi |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Obsolete |
| Protection Features | Over Temperature, Short Circuit |
| Series | - |
