SRA Soldering ProductsUnited States

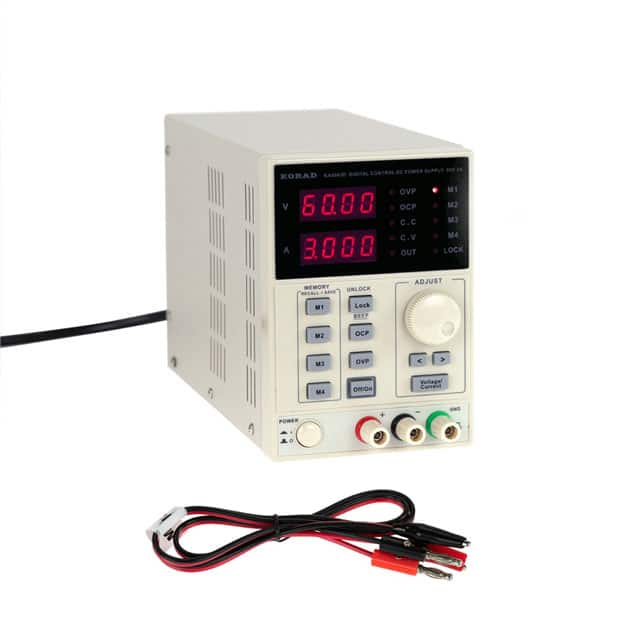

POWER SUPPLY, 60V, 3A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 3A |
| Power (Watts) | - |
| Voltage - Output | 0 ~ 60V |
| Voltage - Supply | 115VAC, 230VAC |
| AC and DC characteristics | |
| Accuracy - Voltmeter; Ammeter | 0.5% + 300mV; 0.5% + 10mA |
| Current Regulation - Line | 0.1% + 3mA |
| Current Regulation - Load | 0.1% + 5mA |
| Ripple | 1mV rms, 3mVrms |
| Voltage Regulation - Line | 0.01% + 3mV |
| Voltage Regulation - Load | 0.01% + 2 mV |
| Environment and package | |
| Package | Box |
| Size / Dimension | 10.250" L x 8.670" W x 6.100" H (260.35mm x 220.22mm x 154.94mm) |
| Other | |
| Display Type | Digital |
| Features | Constant Current and Constant Voltage Indicators, Dual Displays |
| Mfr | SRA Soldering Products |
| Number of Characters | 4 (2) |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | KA |
| Type | Bench (AC to DC) |
