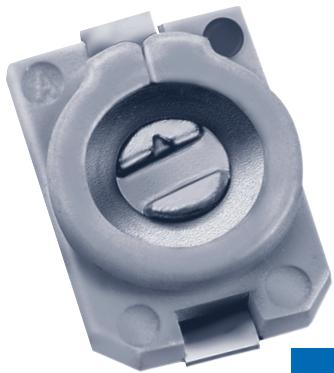

JZ100HV

ActiveTrimmers, Variable CapacitorsSurface Mount

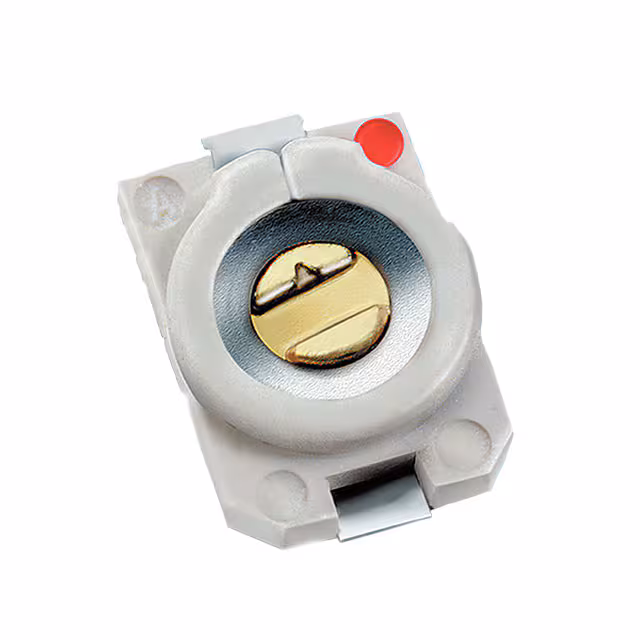

CAP TRIMMER 2-10PF 350V SMD

JZ100HV is a ceramic chip trimmer capacitor by Knowles Voltronics with a capacitance range of 2.0-10.0 pF, 100V DC working voltage, surface mount package, and operating temperature of -40°C to +85°C.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Datasheet-verified parameters

12 items
ParameterValue and test conditionsSource
Capacitance RangeMin: 2.0 pF, Max: 10.0 pF (+100%/-0%)
DC Working Voltage100 V
DC Withstanding Voltage220 V
Temperature Coefficient0 ± 300 ppm/°C
Q (min.) at 1 MHz1500
Self Resonant Frequency at Maximum Rated Capacitance1.16 GHz
Insulation Resistance10^4 megohms
Operating Temperature-40°C to +85°C
Torque0.14 to 1.0 in-oz
PackageSurface Mount, 4.5 x 3.2 x 1.5 mm (0.177 x 0.126 x 0.059 in)
Packaging12mm tape and reel, 1,000 pcs. per reel
Marking ColorWhite
All parameters (14)ExpandCollapse
Power
Voltage - Rated350 V
Environment and package
Height - Seated (Max)0.057" (1.45mm)
Mounting TypeSurface Mount
Operating Temperature-40°C~85°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®
Size / Dimension0.177" L x 0.126" W (4.50mm x 3.20mm)
Other
Adjustment TypeTop
Capacitance Range2 ~ 10pF
Dielectric MaterialCeramic
FeaturesGeneral Purpose
MfrKnowles Voltronics
Product StatusActive
Q @ Freq1500 @ 1MHz
SeriesJZ_HV
