Knowles VoltronicsUnited States

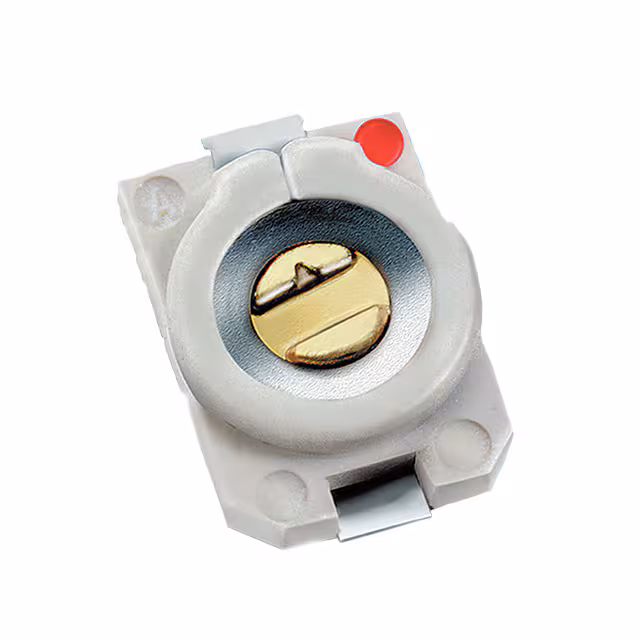

CAP TRIMMER 2-10PF 125V SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 125 V |
| Environment and package | |
| Height - Seated (Max) | 0.057" (1.45mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Other | |
| Adjustment Type | Top |
| Capacitance Range | 2 ~ 10pF |
| Dielectric Material | Ceramic |
| Features | General Purpose |
| Mfr | Knowles Voltronics |
| Product Status | Active |
| Q @ Freq | 1500 @ 1MHz |
| Series | JZ |
Documents
No documents are linked to this part yet.
