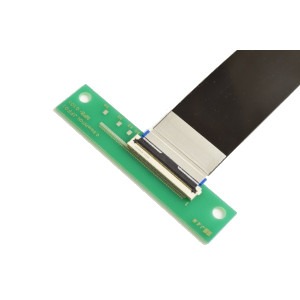

ZIF (Zero Insertion Force) mechanism. Mounting height: 2.1mm. Front-flip type for easy...
All alternatives
View full reportTechnical parameters
Key specs
Pitch500 µm
| Power | |
|---|---|
| Rated Current | 0.5A |
| Rated Voltage | AC.DC 50V |
| Environment and package | |
| Mating Height | 2.1mm |
| Mounting Style | SMT |
| Temperature Range | -40～85℃ |
| Other | |
| Contact direction | Lower contact |
| FFC/FPC Thickness | 0.3mm |
| Mating direction | Right Angle |
| Pitch | 0.5mm |
| Pitch (mm) | 0.5 |
| Poles | 60,68,80P |
