JAMUnited States

JB

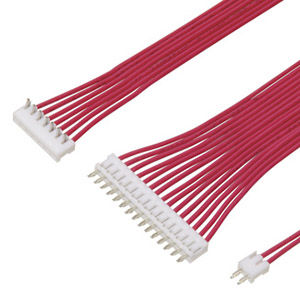

Two types terminals, angle and straight, are available. Housing is common use for both an...

All alternatives

Pitch2 mm

Power
Rated Current	2A
Rated Voltage	AC.DC 250V
Withstand Voltage	AC1000V/1min
Environment and package
Mounting Style	DIP
Temperature Range	-20～+85℃
Wire Size	AWG #24～ #30
Other
508310-2MA	#24 ～ #30 \| 0.88 ～ 1.4mm \| JB-9500 \| SCA-17400
508310-2MAB	#24 ～ #30 \| 0.88 ～ 1.4mm \| JB-9500 \| SCA-17400
508310-2MAF	#24 ～ #30 \| 0.88 ～ 1.4mm \| JB-9500 \| SCA-17400
508320-2MA	#24 ～ #30 \| 0.88 ～ 1.4mm \| JB-9600 \| SCA-17500
508320-2MAC	#24 ～ #30 \| 0.88 ～ 1.4mm \| JB-9600 \| SCA-17500
Applicable P.C.B. Hole dia.	0.9mm(both side0.8mm)
Applicable P.C.B. Thickness	1.2～1.6mm
for Crimping Machine	for Strip Crimper
Insulation Resistance	500MΩover
Pitch	2.0mm
Pitch (mm)	2.0
Poles	Single:2～16P
Terminal No.	Wire Size \| Dia of Insulation \| Applicator
