Microchip TechnologyUnited States

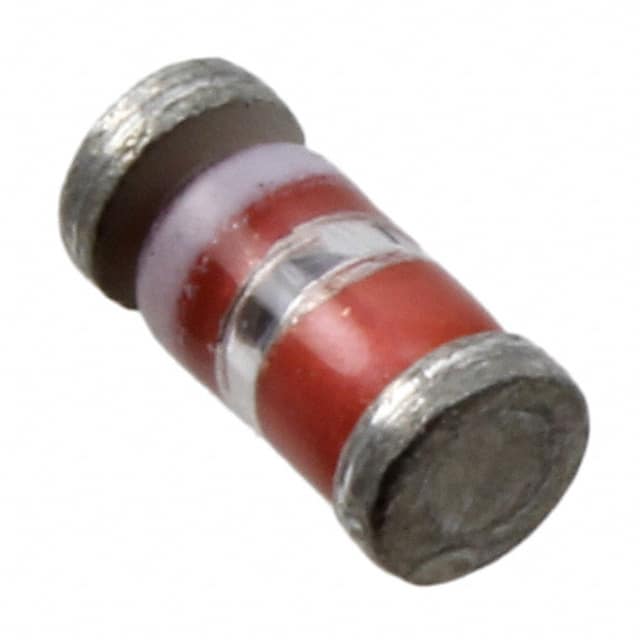

DIODE ZENER 24V 500MW DO213AA
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage24 V
Tolerance2 %
Power500 mWMax
Zener impedance150 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 10 nA @ 18.3 V |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Voltage - Zener (Nom) (Vz) | 24 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 150 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~175°C |
| Package | Bulk |
| Package / Case | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA |
| Other | |
| Base Product Number | 1N4116 |
| Mfr | Microchip Technology |
| Product Status | Active |
| Series | Military, MIL-PRF-19500/435 |
| Tolerance | ±2% |
Documents
No documents are linked to this part yet.
