CIT Relay and SwitchUnited States

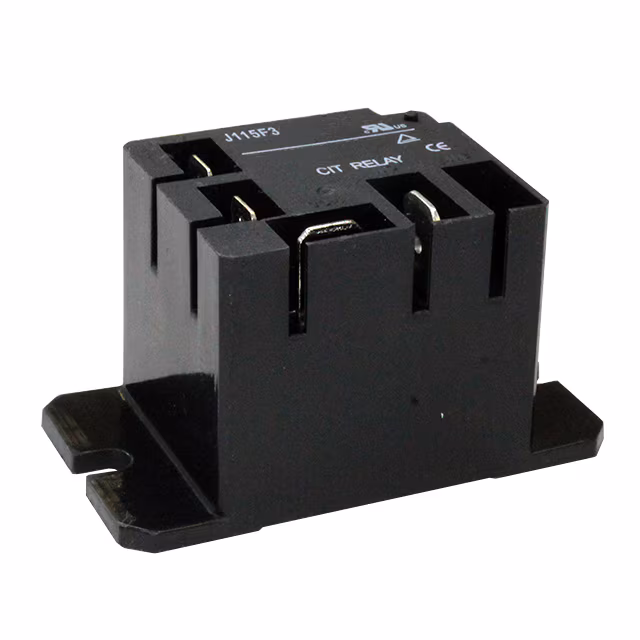

RELAY GEN PURPOSE SPDT 40A 24V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage24 V
Contact formSPDT
Contact current40 AMax
Switching voltage277 VMax
| Power | |
|---|---|
| Coil Current | 25 mA |
| Coil Voltage | 24VDC |
| Contact Rating (Current) | 40 A |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Switching Voltage | 277VAC, 110VDC - Max |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tray |
| Other | |
| Coil Insulation | Class F |
| Coil Resistance | 960 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Features | - |
| Mfr | CIT Relay and Switch |
| Operate Time | 15 ms |
| Product Status | Active |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Series | J115F3 |
| Termination Style | Quick Connect - 0.187"/0.250" |
Documents
No documents are linked to this part yet.
