CIT Relay and SwitchUnited States

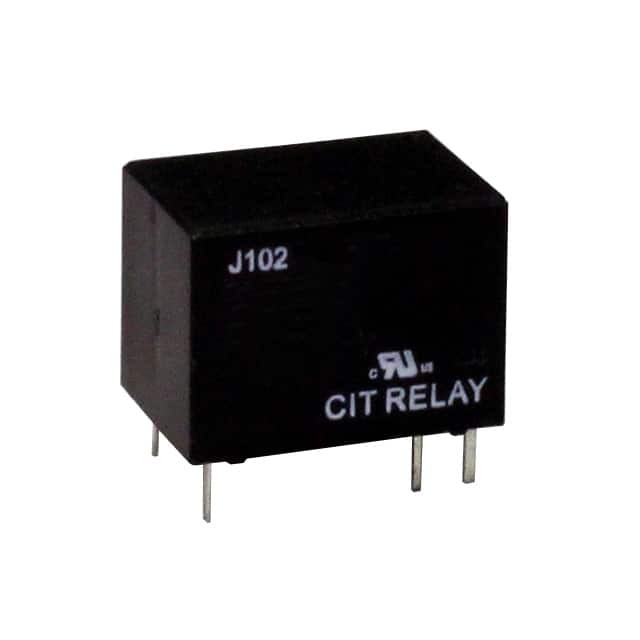

RELAY GEN PURPOSE SPST 1A 5V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage5 V
Contact formSPST-NO
Contact current1 AMax
Switching voltage300 VMax
| Power | |
|---|---|
| Coil Current | 89.3 mA |
| Coil Voltage | 5VDC |
| Contact Rating (Current) | 1 A |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Switching Voltage | 300VAC, 150VDC - Max |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Other | |
| Coil Insulation | - |
| Coil Resistance | 56 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver (Ag) |
| Features | - |
| Mfr | CIT Relay and Switch |
| Operate Time | 5 ms |
| Product Status | Active |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Series | J102 |
| Termination Style | PC Pin |
