Telegartner IncGermany

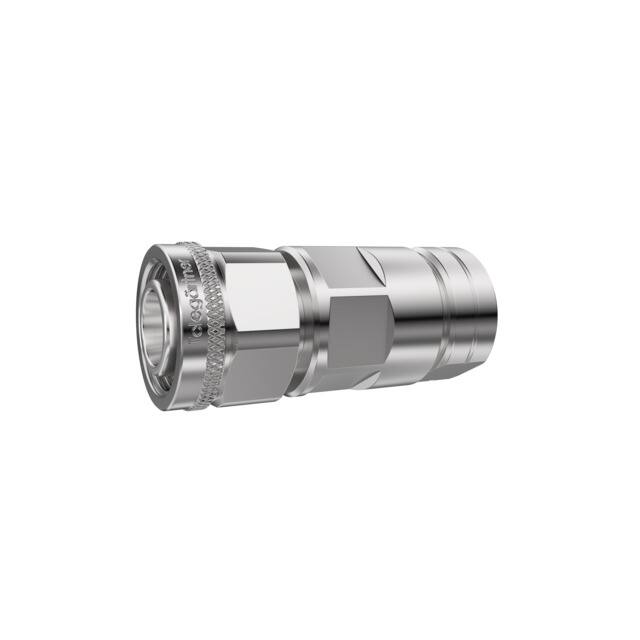

2.2-5 STRAIGHT PLUG HANDSCREW
All alternatives
View full reportTechnical parameters
Key specs
GenderMale
Impedance50 Ω
Max frequency3 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 3 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C~85°C |
| Package | Bag |
| Other | |
| Base Product Number | J01460A2 |
| Body Finish | White Bronze |
| Body Material | - |
| Cable Group | 1/2" Flex |
| Center Contact Material | - |
| Center Contact Plating | Silver |
| Connector Style | 2.2/5 |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp or Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insertion Loss | - |
| Mating Cycles | 100 |
| Mfr | Telegartner Inc |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Clamp |
