IC REG CTRLR BOOST/FLYBACK 8DFN
All alternatives
View full reportTechnical parameters
Key specs
TopologyFlyback
Outputs1
Input voltage9 ~ 16 V
Switching frequency2 MHz
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V |
| AC and DC characteristics | |
| Frequency - Switching | Up to 2MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package | Tape & Reel (TR) |

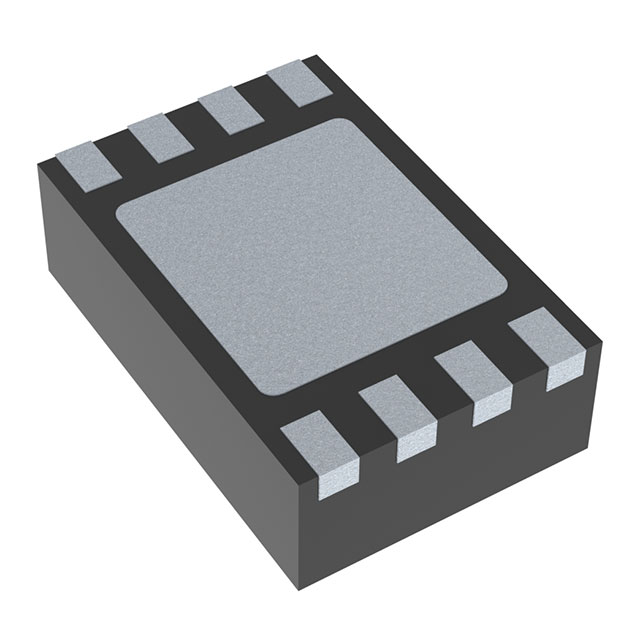

| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
| Other | |
| Base Product Number | ISL6843 |
| Clock Sync | No |
| Control Features | Current Limit, Frequency Control |
| Duty Cycle (Max) | 96% |
| Function | Step-Up, Step-Up/Step-Down |
| Mfr | Renesas Electronics Corporation |
| Number of Outputs | 1 |
| Output Configuration | Positive, Isolation Capable |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Product Status | Obsolete |
| Serial Interfaces | - |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Boost, Flyback |
