IntersilUnited States

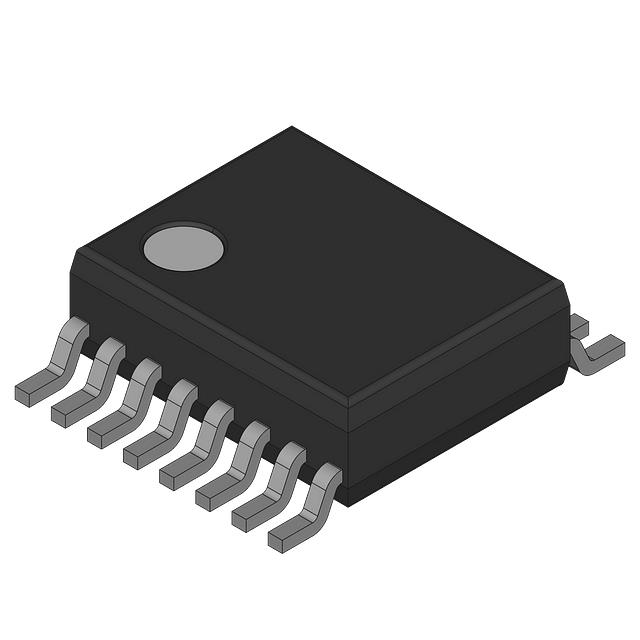

IC INST AMP 2 CIRCUIT 16QSOP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage2.4 ~ 5.5 V
Input offset voltage35 µVTyp
Quiescent current120 µATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 10 pA |
| Current - Output / Channel | 31 mA |
| Current - Supply | 120µA |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 2.4 V |
| AC and DC characteristics | |
| -3db Bandwidth | 180 kHz |
| Slew Rate | 0.5V/µs |
| Voltage - Input Offset | 35 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Other | |
| Amplifier Type | Instrumentation |
| Mfr | Intersil |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Packaging | Tube |
| Part Status | Obsolete |
| Series | - |
