NKK SwitchesJapan

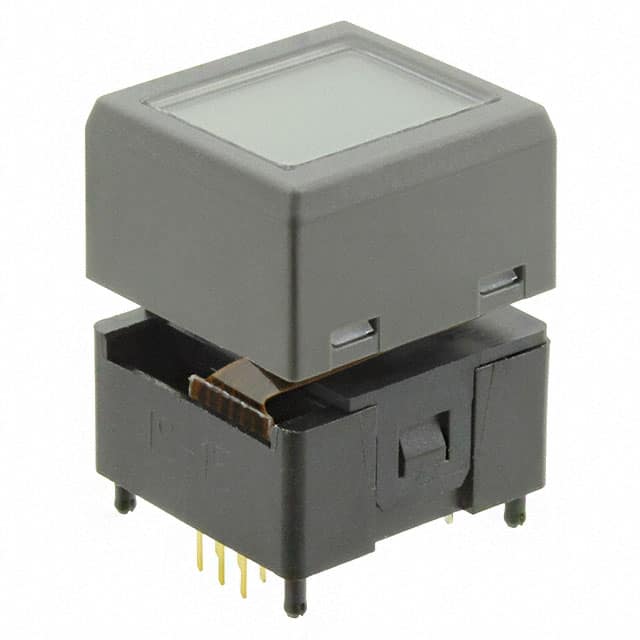

SW PROG DISPLAY SPST-NO 0.1A 12V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.1A @ 12VDC |
| LED Forward Current | 10, 8.5, 8mA |
| LED Forward Voltage | 2.0, 2.8, 2.8VDC |
| Supply Voltage | 4.9 ~ 5.1VDC |
| Environment and package | |
| Face Size | 19.0mm L x 18.0mm W |
| Mounting Type | Through Hole |
| Operating Temperature | -15°C~50°C |
| Package | Bulk |
| Other | |
| Base Product Number | IS15ESBF |
| Circuit | SPST-NO |
| Display Mode | Black and White, FSTN Positive |
| LED Color | Red - Green - Blue |
| Mfr | NKK Switches |
| Operating Force | 173gf |
| Pixel Format | 64 x 32 |
| Product Status | Active |
| Series | SmartDisplay™ |
| Style | Compact, High Resolution |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Travel Range | 1.8mm |
| Type | Pushbutton, LCD |
| Viewing Area | 14.5mm L x 11.8mm W |
