NKK SwitchesJapan

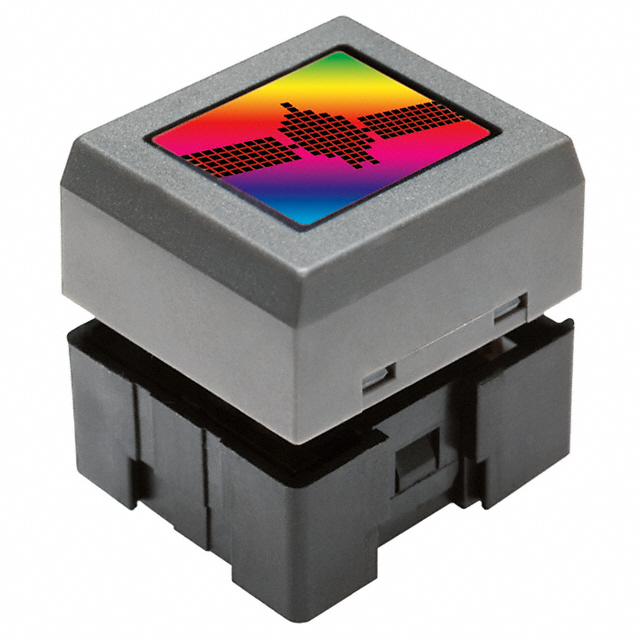

SW PROG DISPLAY SPST-NO 0.1A 12V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.1A @ 12VDC |
| LED Forward Current | 10, 10, 10mA |
| LED Forward Voltage | 2.1, 3.3, 3.3VDC |
| Supply Voltage | 3.0 ~ 5.5VDC |
| Environment and package | |
| Face Size | 23.13mm L x 20.59mm W |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 40°C |
| Package | Bulk |
| Other | |
| Circuit | SPST-NO |
| Display Mode | Black and White, FSTN Positive |
| LED Color | Red - Green - Blue |
| Mfr | NKK Switches |
| Operating Force | 224gf |
| Pixel Format | 36 x 24 |
| Product Status | Obsolete |
| Series | SmartDisplay™ |
| Style | Standard |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Travel Range | 1.8mm |
| Type | Pushbutton, LCD |
| Viewing Area | 15.0mm L x 10.8mm W |
