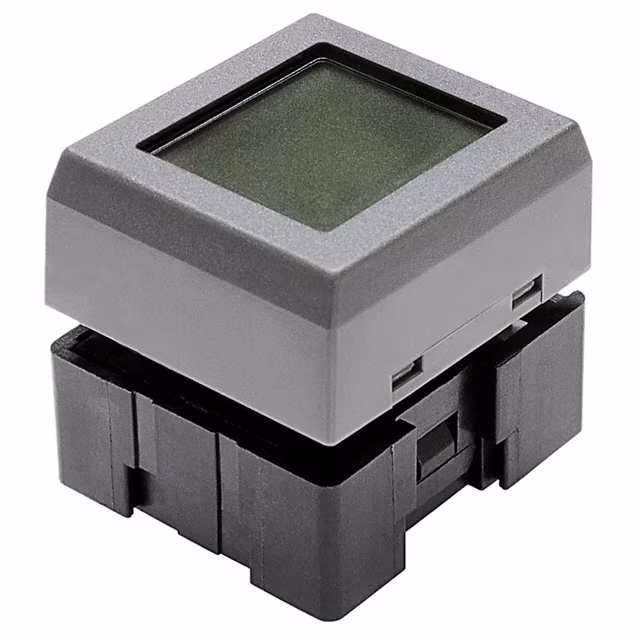

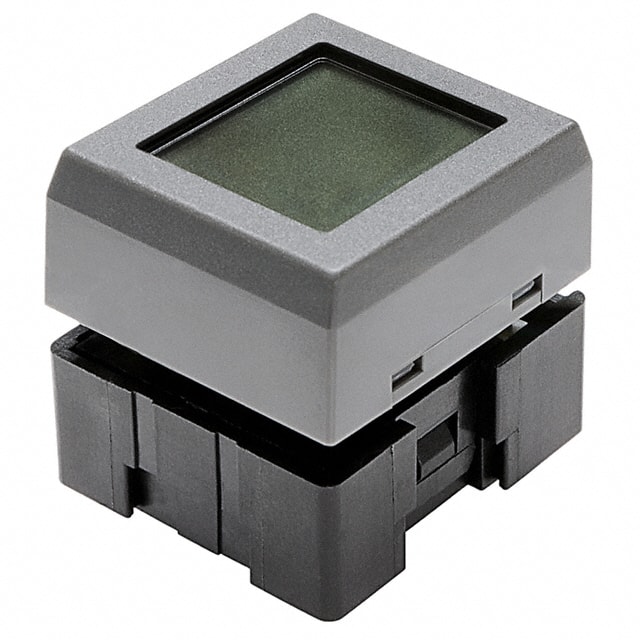

IS15ABDP4E
NKK SwitchesJapan

IS15ABDP4E

ObsoleteProgrammable Display Switches

SW PROG DISPLAY SPST-NO 0.1A 12V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Contact Rating @ Voltage0.1A @ 12VDC
LED Forward Current15mA
LED Forward Voltage2.2VDC
Supply Voltage3.0 ~ 5.5VDC
Environment and package
Face Size23.13mm L x 20.59mm W
Mounting TypeThrough Hole
Operating Temperature0°C~40°C
PackageBulk
Other
CircuitSPST-NO
Display ModeBlue, STN Negative
LED ColorYellow, Super Bright
MfrNKK Switches
Operating Force224gf
Pixel Format36 x 24
Product StatusObsolete
SeriesSmartDisplay™
StyleStandard
Switch FunctionOff-Mom
Termination StylePC Pin
Travel Range1.8mm
TypePushbutton, LCD
Viewing Area15.0mm L x 10.8mm W
