View full reportTechnical parameters
| Power | |
|---|---|
| ID-最大漏极电流 | 0.76A |
| Id-额定电流 | 0.76A |
| VDSS-最大漏源电压 | 30V |
| AC and DC characteristics | |
| RDS(on)-漏源导通阻抗 | 600mΩ |
| Ron-最大导通阻抗 | 600mΩ |
| Environment and package | |

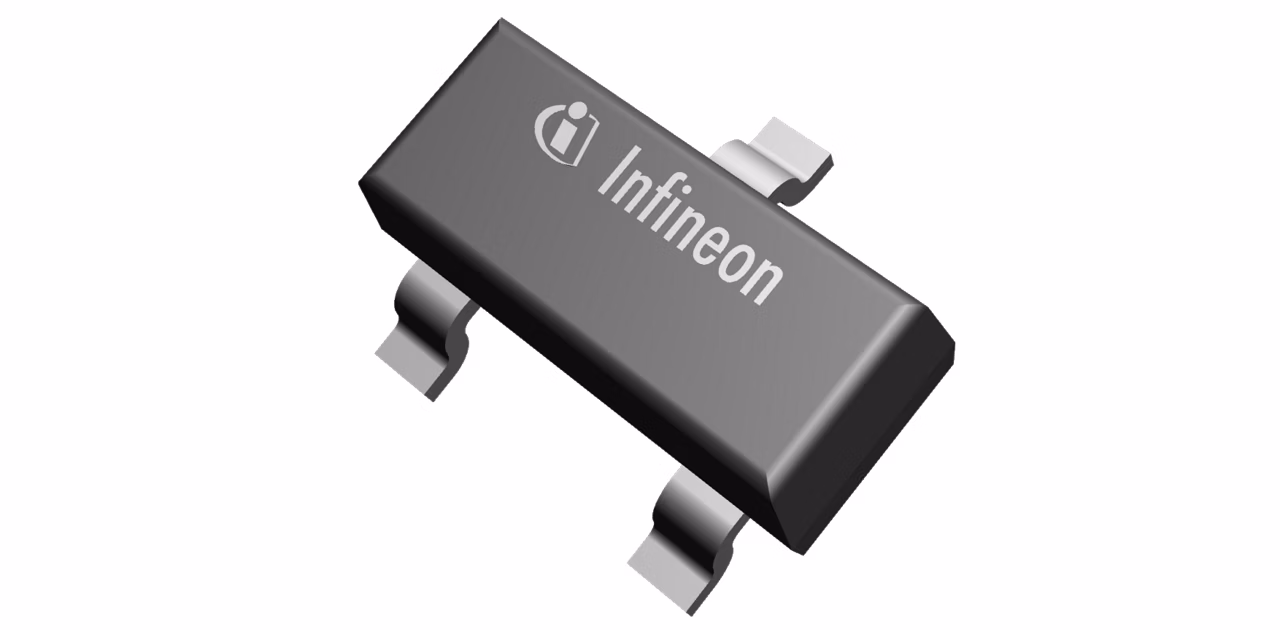

| 封装类型1 | SOT23 |
| Other | |
| Qg-栅极电荷 | 3.4nC |
| Vdss-漏源耐压 | 30V |
| 内置ESD保护二极管 | 0 |
| 内置整流二极管 | 0 |
| 引脚数量1 | 3 |
| 集成ESD保护二极管 | 0 |
| 集成整流二极管 | 0 |
Documents
DatasheetDatasheet · 244.3 KB · 2026-09-22Application NoteApplication Note · 2.0 MB · 2026-09-22Catalog & SelectionCatalog & Selection · 1.7 MB · 2026-09-22Catalog & SelectionCatalog & Selection · 1.5 MB · 2026-09-22Quality & ReliabilityQuality & Reliability · 110.0 KB · 2026-09-22EnvironmentalEnvironmental · 98.9 KB · 2026-09-22
