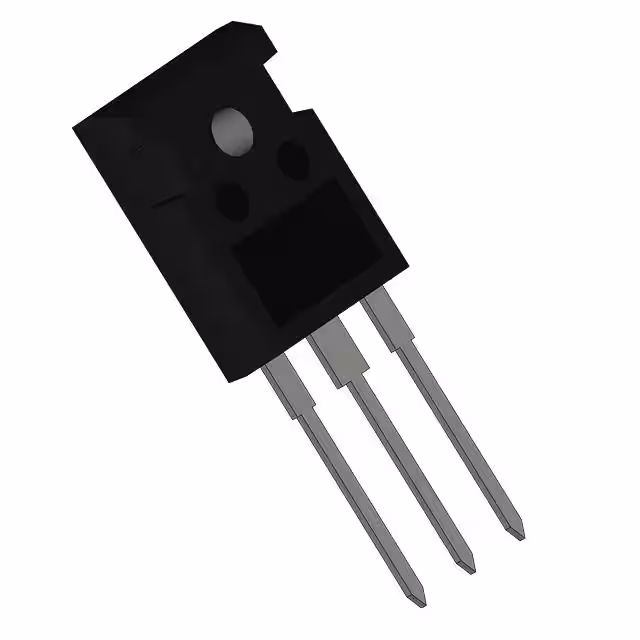

IRGP50B60 - DISCRETE IGBT WITH A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 75 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Power - Max | 390 W |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Bulk |
| Package / Case | TO-3P-3 Full Pack |
| Supplier Device Package | TO-247AD |
| Other | |
| Gate Charge | 205 nC |
| IGBT Type | NPT |
| Input Type | Standard |
| Mfr | International Rectifier |
| Product Status | Obsolete |
| Reverse Recovery Time (trr) | 42 ns |
| Series | - |
| Switching Energy | 255µJ (on), 375µJ (off) |
| Td (on/off) @ 25°C | 30ns/130ns |
| Test Condition | 390V, 33A, 3.3Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 2.85V @ 15V, 50A |
