Infineon TechnologiesGermany

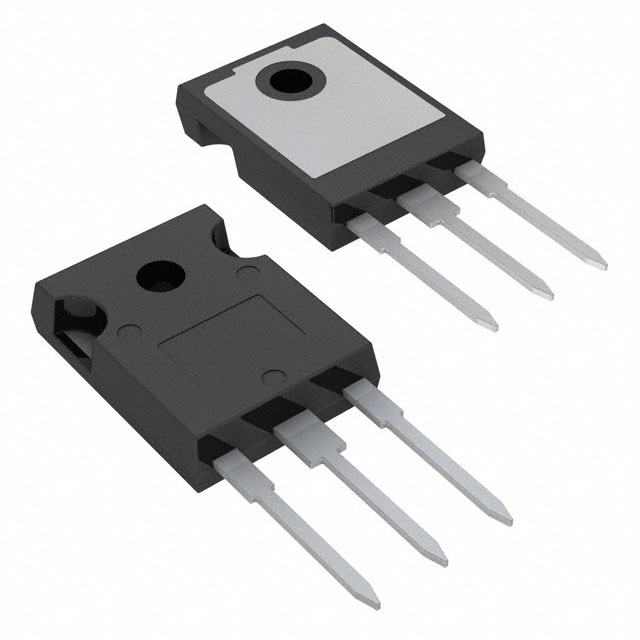

IGBT 600V 42A 160W TO247AC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 42 A |
| Current - Collector Pulsed (Icm) | 84 A |
| Power - Max | 160 W |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Bag |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AC |
| Other | |
| Gate Charge | 120 nC |
| IGBT Type | - |
| Input Type | Standard |
| Mfr | Infineon Technologies |
| Product Status | Obsolete |
| Series | - |
| Switching Energy | 620µJ (on), 330µJ (off) |
| Td (on/off) @ 25°C | 30ns/140ns |
| Test Condition | 480V, 25A, 10Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 25A |
