International RectifierUnited States
MOSFET N-CH 200V 18A D2PAK
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage200 V
Continuous drain current18 A
On-resistance150 mΩMax · 11A
Gate threshold voltage4 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) |
| Drain to Source Voltage (Vdss) | 200 V |
| Power Dissipation (Max) | 150W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Bulk |

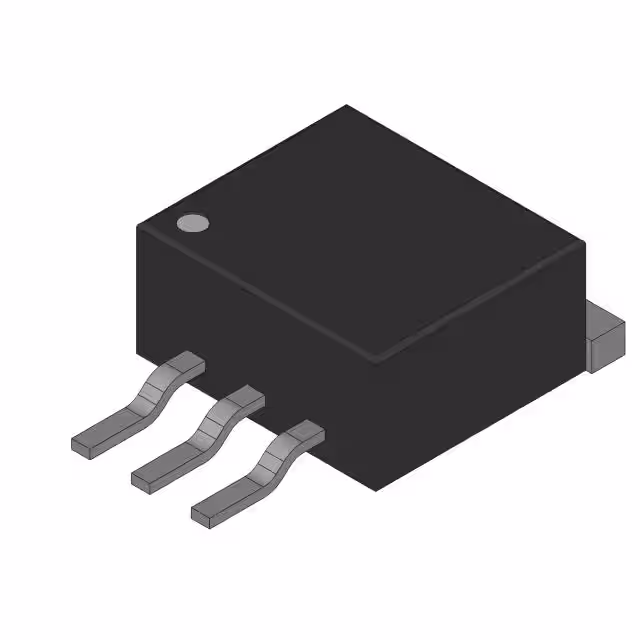

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Other | |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 67 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1160 pF @ 25 V |
| Mfr | International Rectifier |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 11A, 10V |
| Series | HEXFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
